Disguise User Guide

Creating Screens

When you create a new project, a projection surface screen and virtual projector are inserted by default. To remove this default screen see removing screens.

Creating a new screen

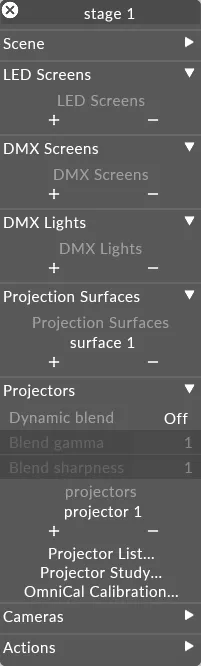

  1. Right-click stage to open the Stage editor. Each type of screen has it’s own tab in the stage editor. Listed below each screen type are screens associated to that type. A new project will, by default, contain a Screen called surface 1. Stage editor showing the different screen types Stage editor showing the different screen types
  2. Left-click the + button for the type of screen you wish to add. This opens the screen manager for that screen type. In this example we will add a new projection surface.
  3. Type the name of the new screen in the new surface text box, in this example Projection Screen, and hit Enter.

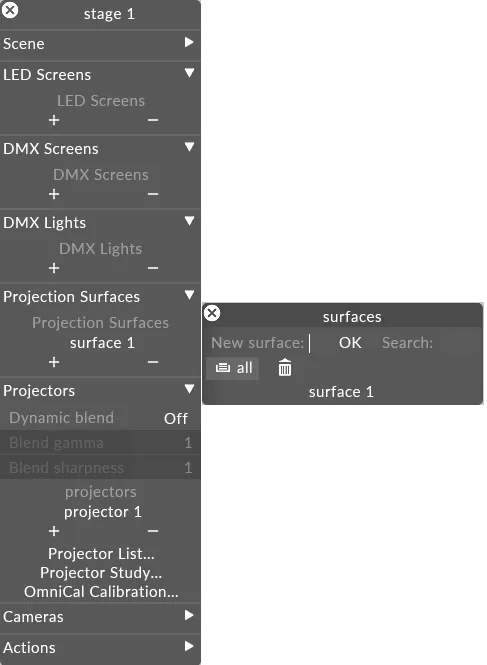

Add a screen To add a screen left-click the + for the correct type of screen and type a name for the new screen

The new screen will appear in the list of screens for that screen type. The new screen will be created and added to the currently active stage and the screen editor will open.

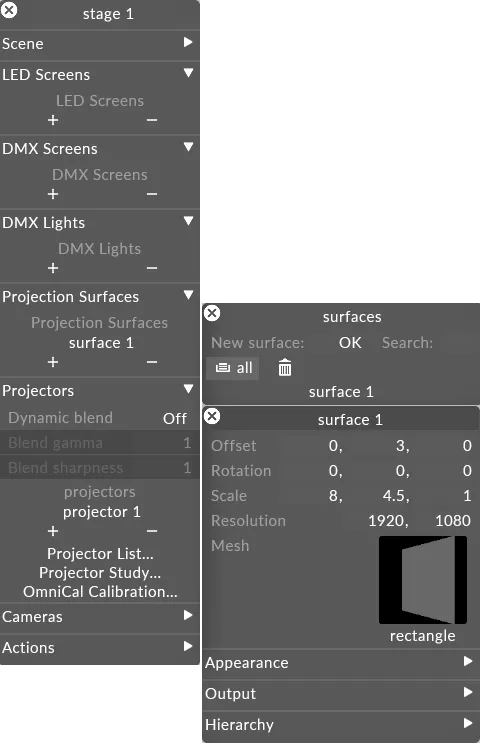

New screen listed New screen listed in the screen list and the screen editor opened.

You can now edit the screen to change its size, position, orientation and shape.
