Editing local channels

If you want to edit DMX channels locally do the following:

1. Hold down Alt and left-click a channel.
2. If you want to change the universe, change the universe property.
3. Change the start channel in the channel property.
4. In the number of fixtures property choose number of fixtures, i.e. pixels you want to change the channel of.
5. Depending on the orientation of the UV map change the direction to right, left, up, down.
6. Click assign.

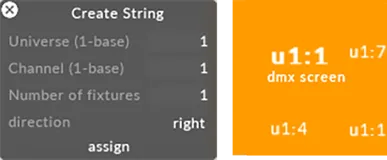

Interface showing how edit local DMX channels
