GX 2 Audio input and output
The GX 2 & GX 2c are equipped with a broadcast quality pro audio card which uses the latest 192kHz AD and DA converters.

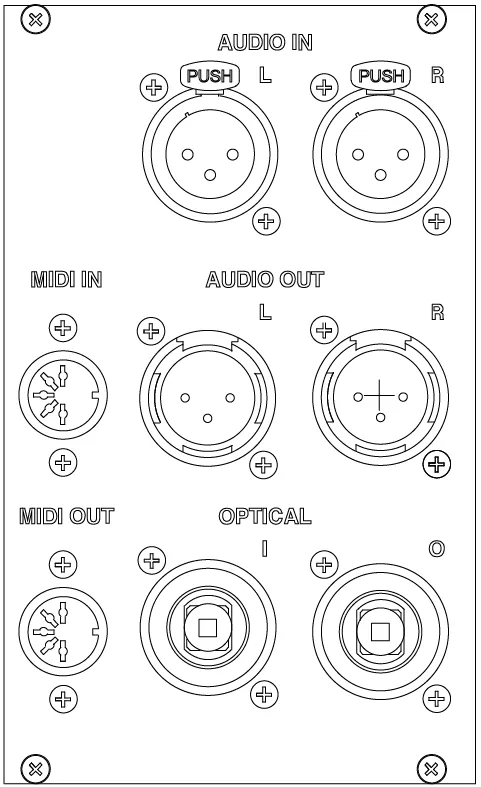

Back panel connections
- XLR Left + Right Input
- XLR Left + Right Output
- ADAT/SPDIF Input
- ADAT/SPDIF Output
- MIDI Input
- MIDI Output
Audio connections on rear of 2x4pro unit.
Front panel connections
- 1/4inch Stereo Monitoring socket
It is possible to monitor audio output from the unit from the 1/4inch stereo socket with a pair of headphones.
RME card settings
- Go to the Windows Start Menu.

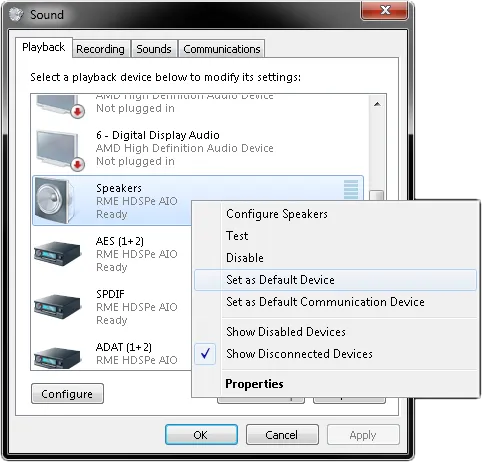

- Right-click on the speaker in the task tray next to the clock on the desktop and click on Playback Devices.
- Scroll Down and Right-click the device named Speakers and select Set as Default device if it is not already selected.
