Audio breakout

Why do I need a breakout cable?

For flexibility each d3 system comes with an analog breakout cable which lets you choose which input/output to use.

What connections does the breakout cable have?

The breakout cable provided with each d3 system is the:

HDSP 9632/HDSPe AIO: Analog breakout cable, balanced (P/N BO9632XLRMKH)

Audio breakout

Each Disguise system is supplied with a breakout cable for the RME HDSP 9632 audio card.

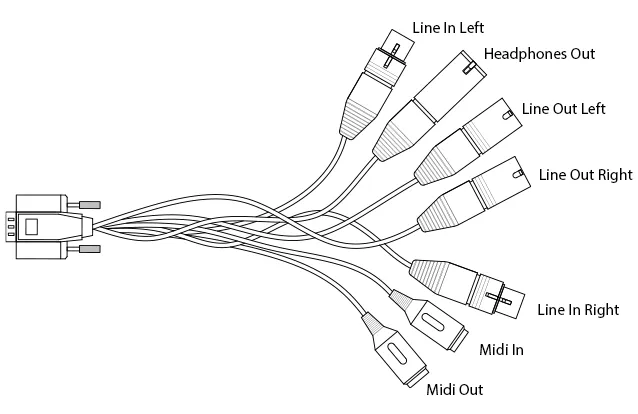

This breakout cable is supplied for the RME HDSP 9632 audio card and provides the following inputs and outputs:

  • 1 x Midi in ( 5 pin DIN )
  • 1 x Midi out ( 5 pin DIN )
  • 1 x Balanced stereo line out ( TRS )
  • 2 x Balanced line out ( XLR )
  • 2 x Balanced line in ( XLR )

Are different breakout cables avaliable?

There are several variations of the audio breakout cables available.

Please refer to the RME website for more information.
