Camera Position Bookmarks
Recalling a camera position
Section titled “Recalling a camera position”Hit one of the function keys ranging from F2-F11.
Storing a camera position
Section titled “Storing a camera position”Hold down the left Alt key, then hit one of the function keys ranging from F2-F11. This stores the current camera position on that function key.
Resetting the camera to its default position
Section titled “Resetting the camera to its default position”Hit the function key F12 This will make the camera return to its central default position, i.e. south-north facing, 10 meters behind the origin position (0,0,0) in 3D space.

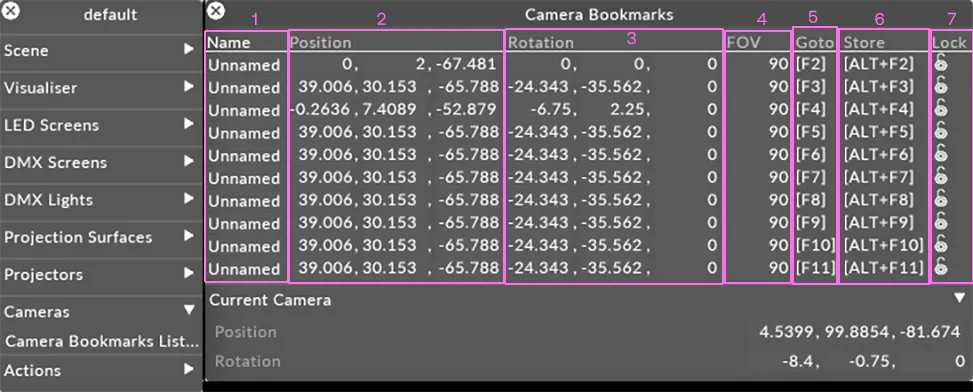

Camera Bookmarks List
Section titled “Camera Bookmarks List”To open the Camera Bookmarks List window:
- Right-click the stage.
- Select the Camera tab
- Select the Camera Bookmarks List option
Or alternatively
Press Ctrl + B
1. Name
Section titled “1. Name”You can enter a custom name for each bookmark.
2. Position
Section titled “2. Position”You can view or edit the position for each projector bookmark position.
3. Rotation
Section titled “3. Rotation”You can view or edit the rotation for each projector bookmark position.
4. Field of View (FOV)
Section titled “4. Field of View (FOV)”You can view or edit the Field of View for each projector bookmark position.
5. Goto
Section titled “5. Goto”Left-click the button to recall a camera position using the Camera Bookmark list.
6. Store
Section titled “6. Store”Left-click the button to store the current visualiser camera position as that camera bookmark
7. Lock
Section titled “7. Lock”Lock the Camera Bookmark from accidental edits.
