FAQs

Keystone

There’s no Keystone tool in Mapping Matter. To quickly set perfectly mapped previews of your Content projected on any surface, you can use the Reverse Mapping Mode There will be no distortion / loss of image quality.

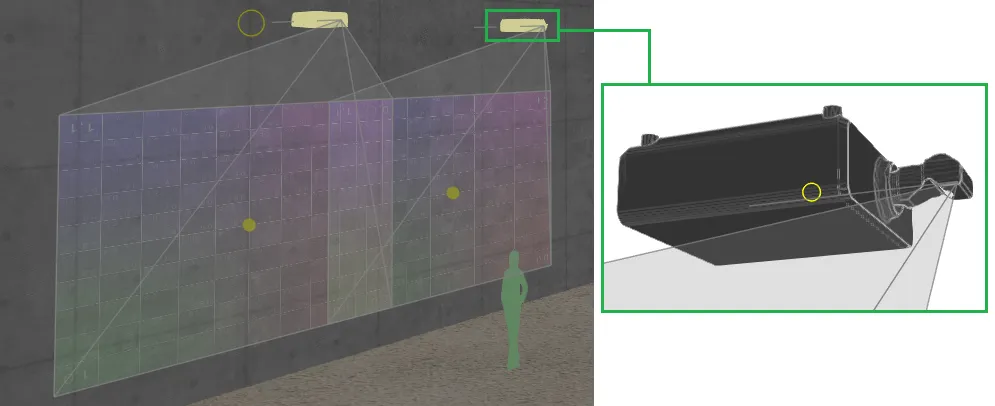

Ultra Short Throw

Here you’ll learn how to simulate odd lens configurations (often used for Ultra Short Throw), such as Reverse Mirror or Snorkel.

The Reverse Mirror type

Warning

You can design your Projector’s mesh in another CAD software, and import it. Or you can directly create a basic custom box in Mapping Matter.

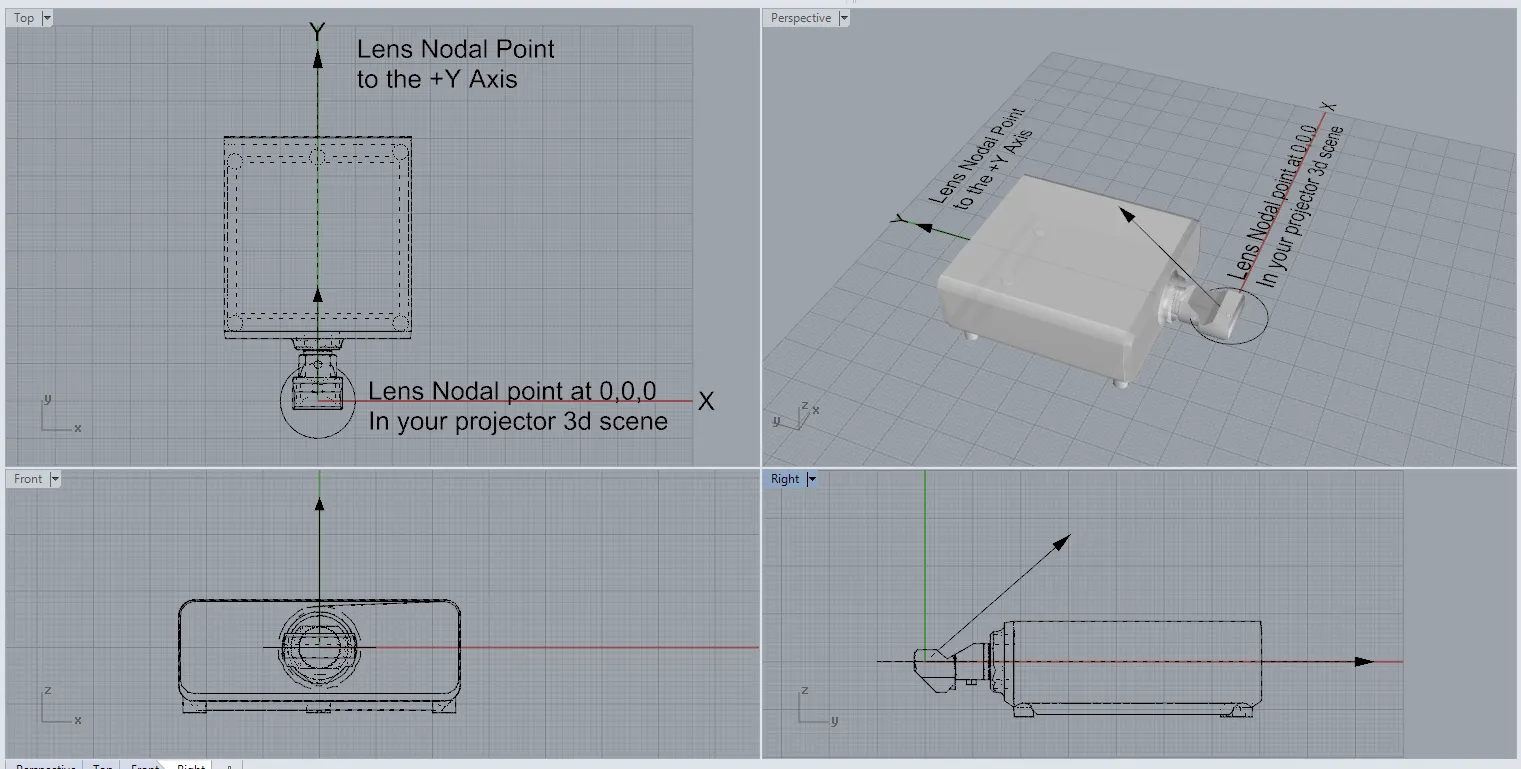

Create a single “joint” .OBJ body mesh in any CAD software, following all requirements below.

• Must have the axis Z-up. (Some softwares have Y-up.)
• It MUST be set in millimeters.
• Nodal Point must be at the Center (0, 0, 0) of your .OBJ file.

The Projector’s front panel should point towards the +Y axis. Note that the its body may be oriented however you like, it will simply be attached to the Light Beam in Mapping Matter.

Create a Projector in Mapping Matter.

Tip

Click here to learn how to manage your Projector Library.

TOP MENU > Projectors > Projector

If you have any issue with your imported mesh, first make sure you followed the requirements above. Otherwise, you may have to Optimize your mesh pre-import.

You’ll need to refresh your Browser for all updates to appear in your Scene and the Projector Library.

• Set the Throw Ratio according to the Manufacturer’s specs.

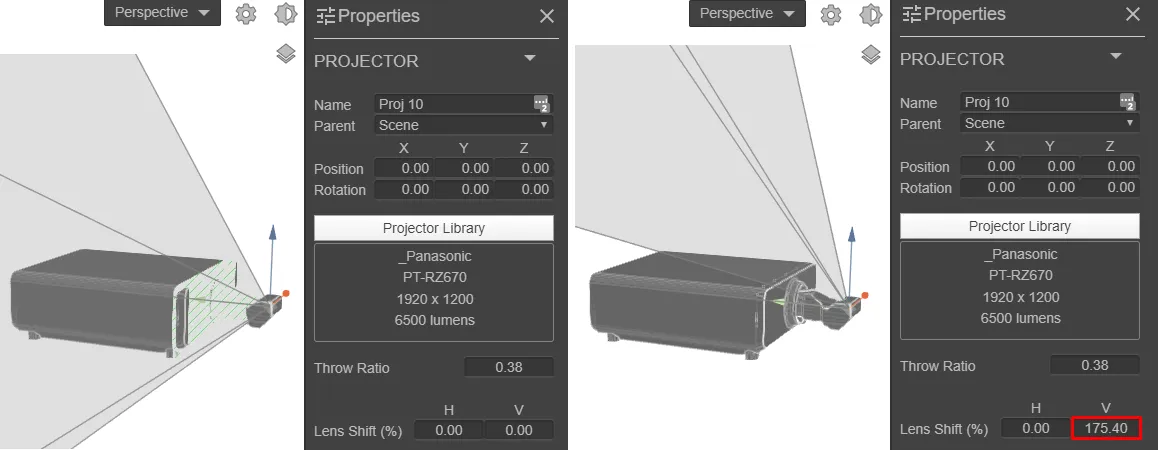

• Adjust the Vertical Lens Shift. (Go to the Properties panel.)

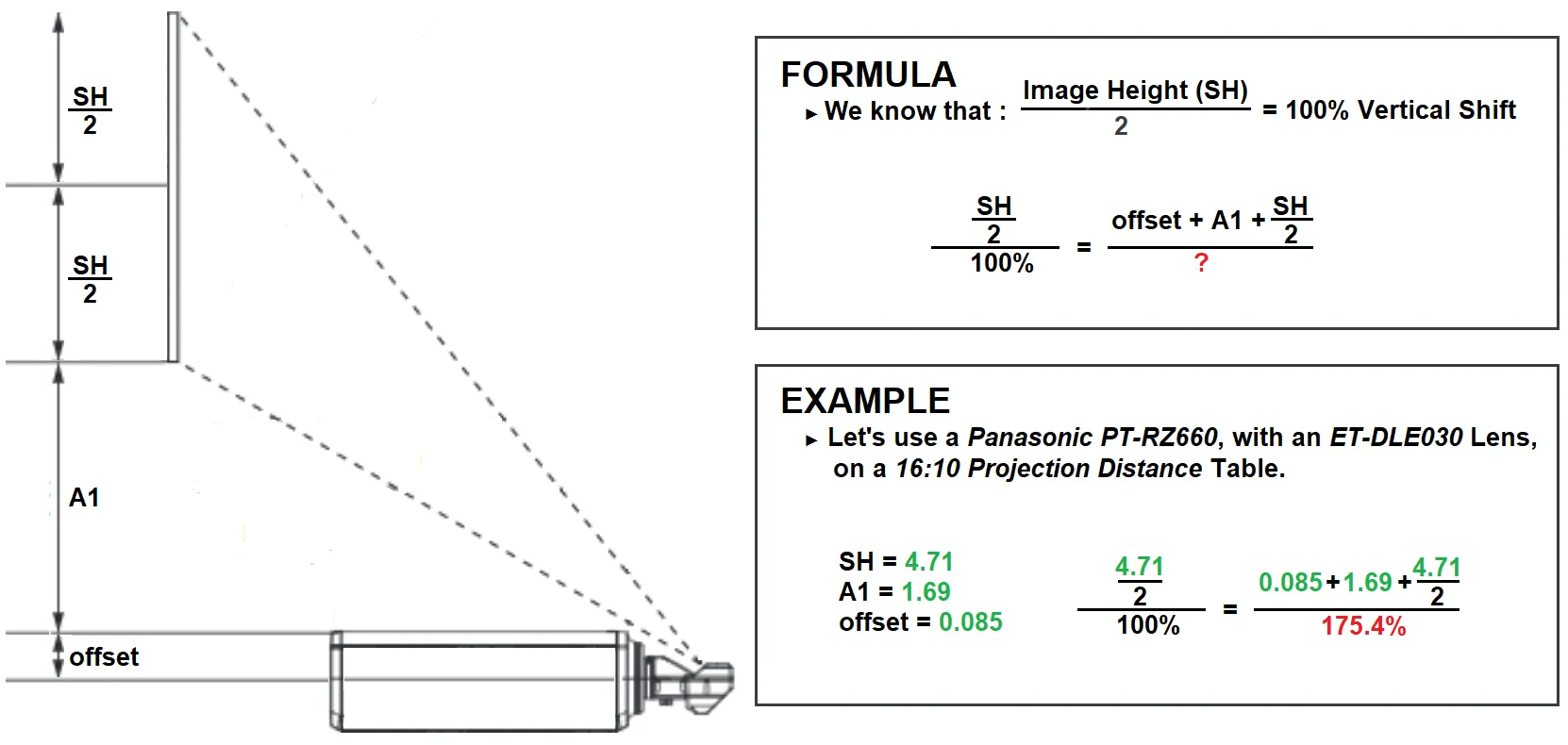

You can calculate the default (or “native”) Vertical Lens Shift, using information that you will find in the Manufacturer’s specs.

Tip

Learn how to use the Dimension Tool for your measurements.

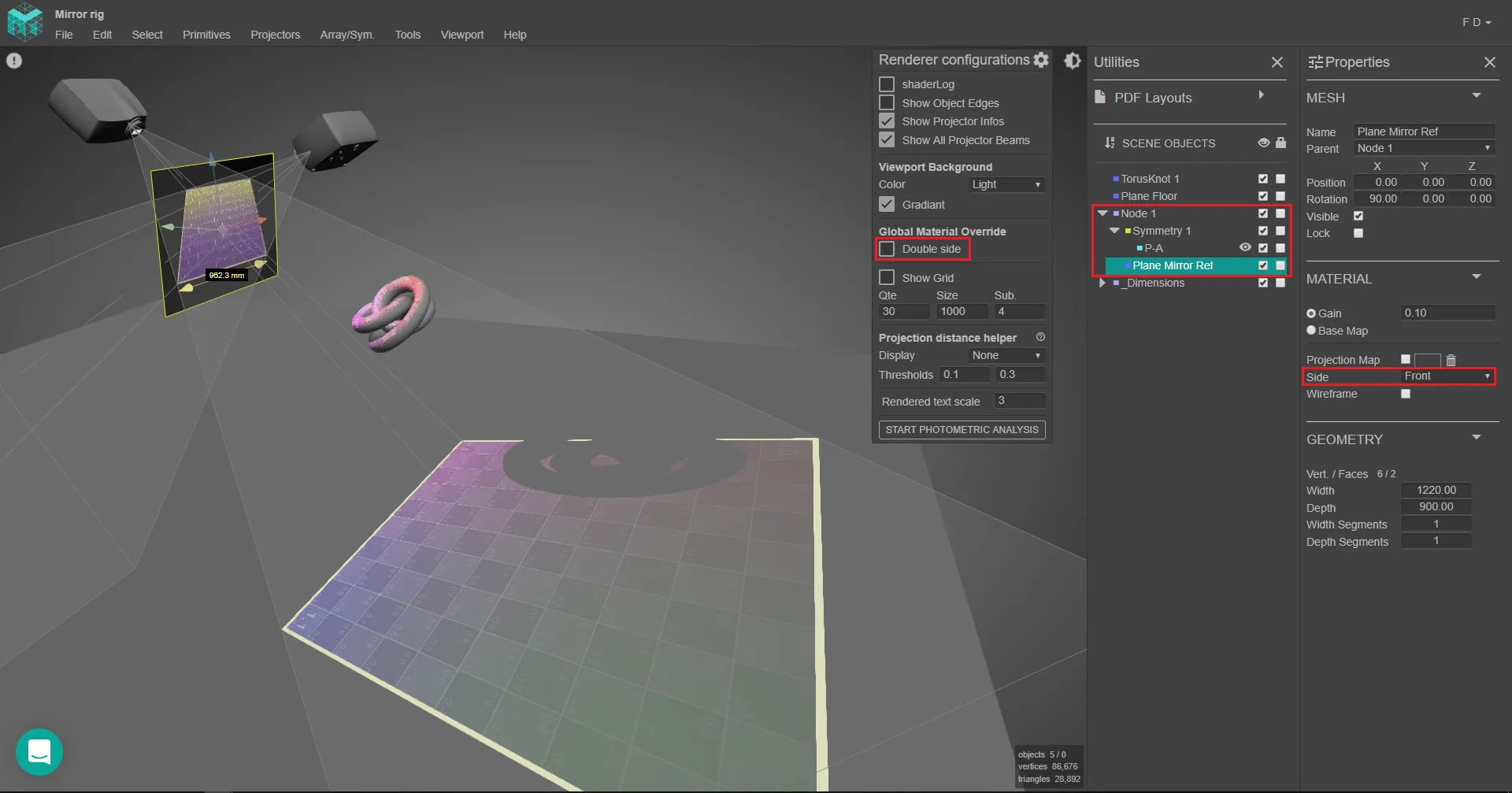

Fake Mirror (Mirror Bounce)

There’s no Mirror feature in Mapping Matter. But there’s an easy workaround to achieve an identical result.

Make sure Global Material Override is disabled in the Viewport Settings panel.

Create a Node Primitive.

This will top the Hierarchy for all Objects of the Mirror setup, allowing you to move / rotate it all easily.

• Create a Symmetry, as a Child of the Node.
• Create a Plane Primitive, to simulate the Mirror itself. Make is a Child of the Node. And set its Side (MATERIAL) parameter to Front.
• Create a Projector. Make it a Child of the Symmetry. Adjust its Position / Orientation so it hits the Mirror from its Front side.

Pixel Resolution for Pixel

This may help you obtain your Full Projection’s Resolution.

Warning

This method won’t be as accurate as if calculated in a software like Autocad.

1. Use the Dimension Tool to measure the full area of Projection (Height & Width).

Tip

In the Snap toolbox, uncheck both Bounding Box and Vertex to get the Red Dot, which appears at any intersection between a Surface and your Cursor.

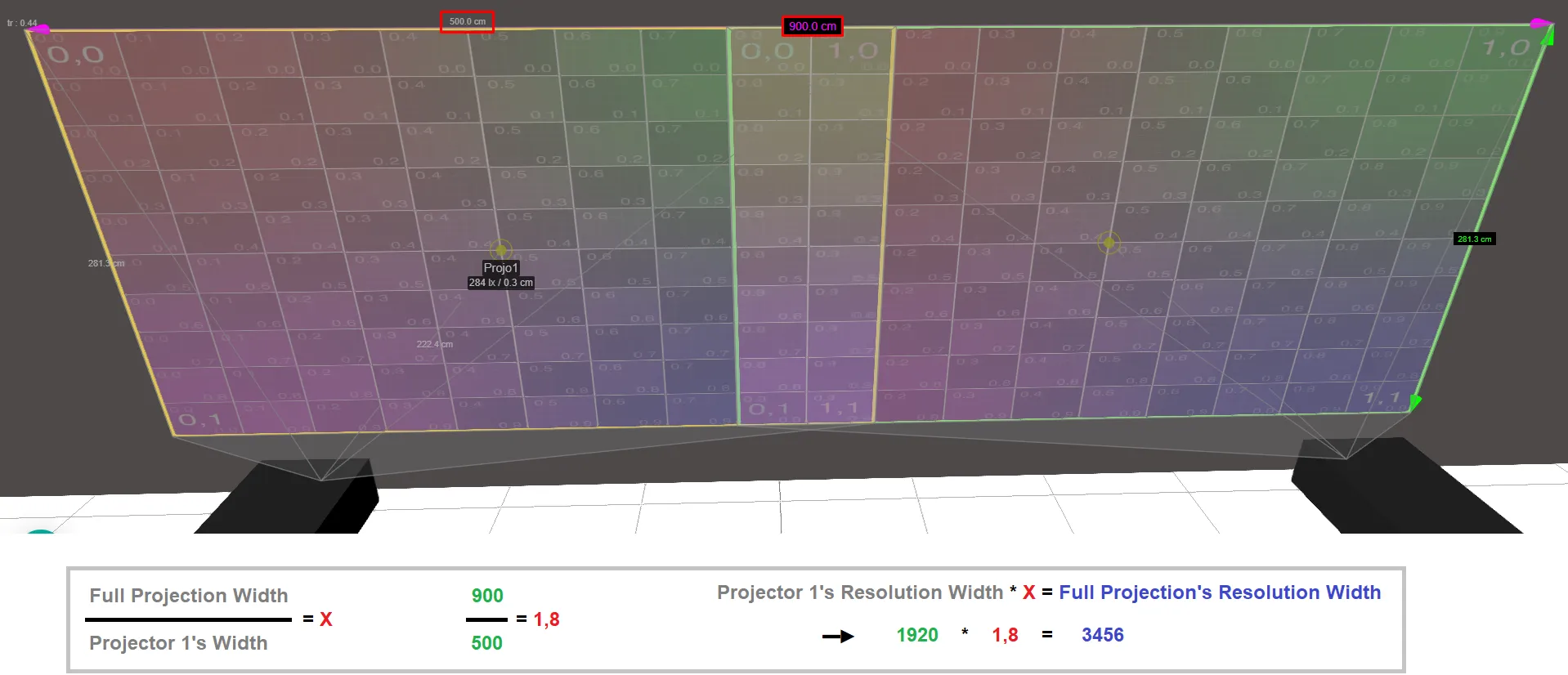

2. Check your Projector’s Resolution, and solve the following equation.

Let’s illustrate that with two 1920x1080 Projectors, on a 20% blending.

We’ll find a Full Projection Resolution of 3456*1080 pixels.

Space Mouse

We don’t support Space Mouses.

Shortcuts

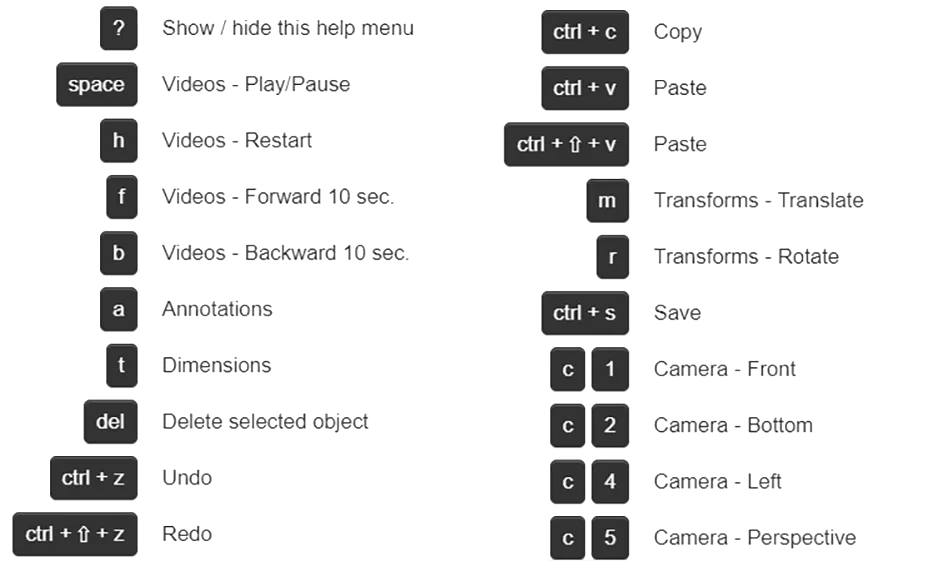

Press ? to display the full list of shortcuts.

Undo and Revisions History

You can Undo (ctrl+Z) or Redo (ctrl+shift+Z) any action by going to TOP MENU > Edit.

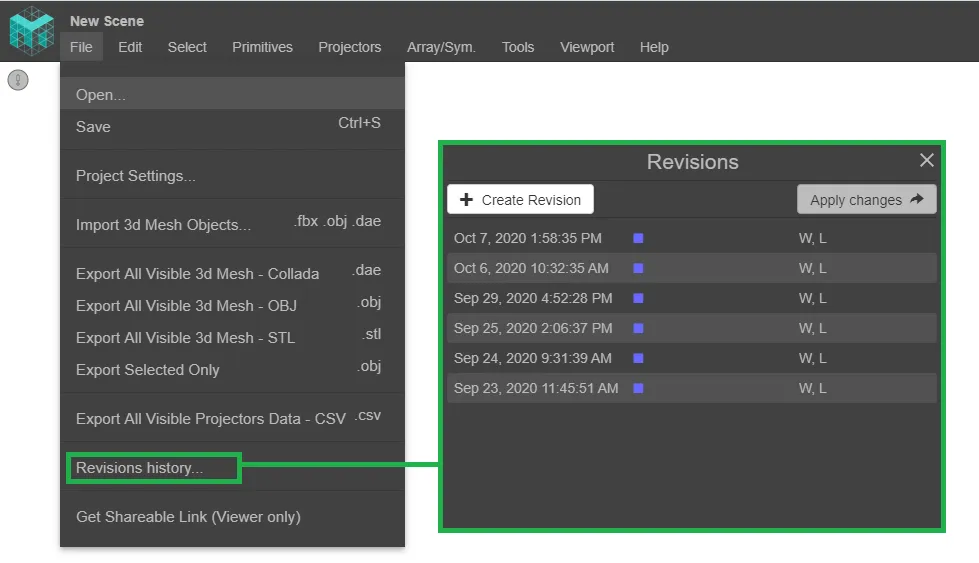

You can also use Revisions History to access the 10 last times you opened or refreshed your Scene.
