GX 1 Video Input

Your system is equipped with capture cards. These cards have the ability to capture live video from either SD-SDI or HD-SDI video sources with up to three unique feeds, or two unique 3G-SDI feeds per machine.

SD-SDI	HD-SDI	3G-SDI
3	3	2

Supported formats

720x486i @ 59.94 Hz NTSC 720x576i @ 50.00 Hz PAL 1280x720p @ 23.976Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz 1920x1080i @ 47.96Hz, 48Hz, 50Hz, 59.94Hz, 60Hz 1920x1080PsF @ 23.976Hz, 24Hz, 25Hz, 29.97Hz, 30Hz 1920x1080p @ 23.976Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 47.96Hz, 48Hz, 50Hz, 59.94Hz, 60Hz 2048X1080p @ 23.976Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 47.96Hz, 48Hz, 50Hz, 59.94Hz, 60Hz 2048X1080i @ 47.96Hz, 48Hz, 50Hz, 59.94Hz, 60Hz 2048x1556PsF @ 14.98Hz, 15Hz, 18.98Hz, 19Hz 4K UHD 3840x2160, 4K P/PsF @ 23, 24, 25, 29, 30fps 4K DCI 4096x2160, 4K P/PsF, @23, 24, 25, 29, 30fps

It is possible to have a different format on each input, However the limitations are a maximum of 1x 4k or 2x 1080p60.

If you are using 1x 4k or 2x 1080p it is not possible to use any other video inputs on the unit due to hardware limitations.

Back-Plate Layout

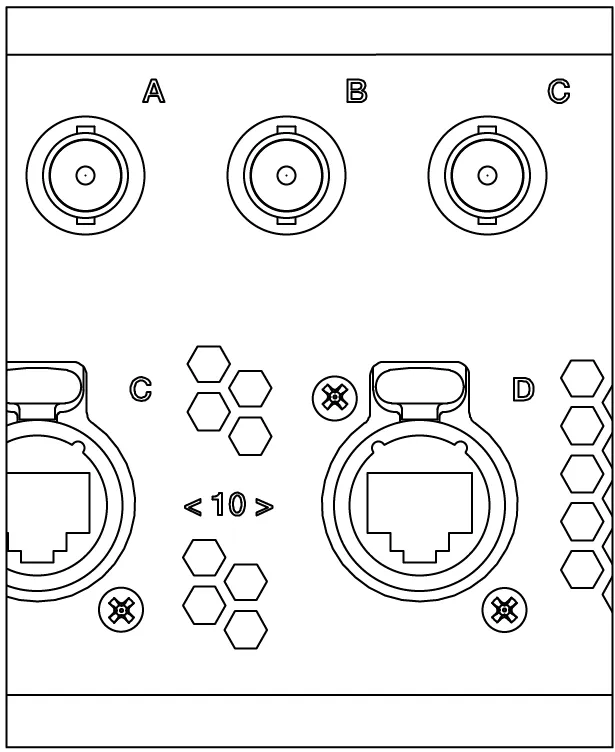

Diagram of Video Capture BNC connections on rear of GX 1
