EX 2C Video Input
Max Number of Unique Inputs
Section titled “Max Number of Unique Inputs”HDMI 2.0 video input is supported from Designer software version r32.2 onwards. This must be used with EX 2/EX 2C/EX 3+ OS version 25Q3 onwards following an update to the Deltacast SDK, which resolves TA-52. This means that up to 2x 4K DCI inputs or 1x 4K DCI + 4x Full-HD inputs are supported any one time via the following physical connections:
- 1x HDMI 2.0 capture (HDMI connector)
- 2x 12G SDI inputs via Ports A and C (HD-BNC connector), or 4x 3G SDI inputs (HD-BNC connector)
The following table shows all possible maximum input configurations:
| Supported Configurations | 3G-SDI | 12G-SDI | HDMI 2.0 |
|---|---|---|---|
| 12G + HDMI | 0 | 1 | 1 |
| Full-HD + HDMI | 4 | 0 | 1 |
| 2x 12G | 0 | 2 | 0 |
Supported Formats
Section titled “Supported Formats”All video standards outlined here have been tested up to the following:
- Bit depth - 10-bit (all modes).
- Chroma subsampling - YCbCr 4:2:2 (all modes).
- Each SDI input supports 3G Level A and Level B when applicable.
- All quadlink formats support either square division or two-sample interleave (2SI) methods.
4K DCI (4096 x 2160)
Section titled “4K DCI (4096 x 2160)”4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
Quadlink 4K DCI (4096 x 2160 using 4x 2048 x 1080 inputs)
Section titled “Quadlink 4K DCI (4096 x 2160 using 4x 2048 x 1080 inputs)”4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
UHD (3840 x 2160)
Section titled “UHD (3840 x 2160)”2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Quadlink UHD (3840 x 2160 using 4x 1920 x 1080 inputs)
Section titled “Quadlink UHD (3840 x 2160 using 4x 1920 x 1080 inputs)”2160p50, 2160p59.94, 2160p60
2K DCI (2048 x 1080)
Section titled “2K DCI (2048 x 1080)”2K DCI 23.98p, 2K DCI 24p, 2K DCI 24psf, 2K DCI 25p, 2K DCI 25psf, 2K DCI 29.97p, 2K DCI 29.97psf, 2K DCI 30p, 2K DCI 30psf, 2K DCI 47.952p, 2K DCI 48p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
Full HD (1920 x 1080)
Section titled “Full HD (1920 x 1080)”1080p23.98, 1080psf23.98, 1080p24, 1080psf24, 1080p25, 1080psf25, 1080p29.97, 1080psf29.97, 1080p30, 1080psf30, 1080p50, 1080i50, 1080p59.94, 1080i59.94, 1080p60, 1080i60
HD (1280 x 720)
Section titled “HD (1280 x 720)”720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
HDMI 2.0
Section titled “HDMI 2.0”All video standards outlined here have been tested up to the following:
- Bit depth - 8/10/12/16-bit, but anything above 10-bit will be treated as 10-bit
- Colour Formats - YCbCr 4:2:2, YCbCr 4:4:4, RGB Limited, RGB Full (all modes).
- Note that HDMI 2.0 has a bandwidth limit of around 18Gbps. This means at higher resolutions and refresh rates (eg. 4k@60) , the colour format might need to be dropped to YCbCr 4:2:2 for it to be accepted.
4K DCI (4096 x 2160)
Section titled “4K DCI (4096 x 2160)”4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
UHD (3840 x 2160)
Section titled “UHD (3840 x 2160)”2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
2K DCI (2048 x 1080)
Section titled “2K DCI (2048 x 1080)”2K DCI 23.98p, 2K DCI 24p, 2K DCI 24psf, 2K DCI 25p, 2K DCI 25psf, 2K DCI 29.97p, 2K DCI 29.97psf, 2K DCI 30p, 2K DCI 30psf, 2K DCI 47.952p, 2K DCI 48p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
Full HD (1920 x 1080)
Section titled “Full HD (1920 x 1080)”1080p23.98, 1080psf23.98, 1080p24, 1080psf24, 1080p25, 1080psf25, 1080p29.97, 1080psf29.97, 1080p30, 1080psf30, 1080p50, 1080p59.94, 1080p60, 1080i60
HD (1280 x 720)
Section titled “HD (1280 x 720)”720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
Back-Plate Layout
Section titled “Back-Plate Layout”

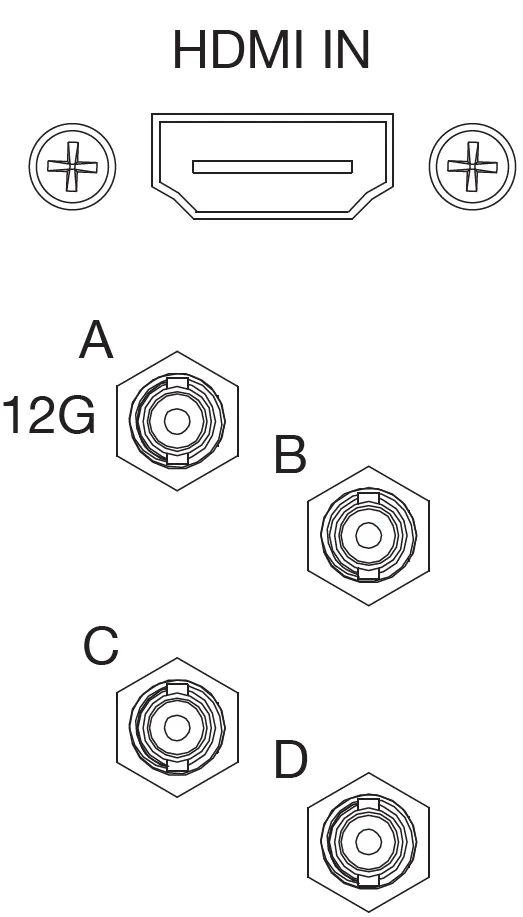

Diagram of Video Capture HDMI and BNC connections on rear of a EX 2C
