GX 3 Audio input and output

The GX 3 is equipped with a broadcast quality pro audio card which uses the latest 192kHz AD and DA converters.

Back panel connections

• XLR Left + Right Input
• XLR Left + Right Output
• ADAT/SPDIF Input
• ADAT/SPDIF Output
• MIDI Input
• MIDI Output

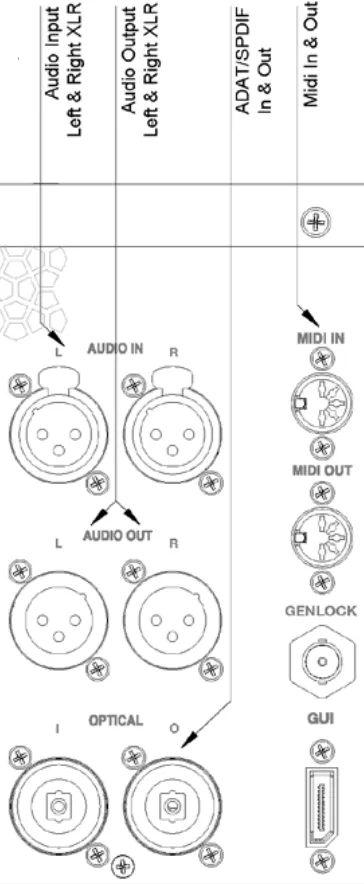

Audio connections on rear of gx 3 unit.

Front panel connections

• 1/4inch Stereo Monitoring socket

It is possible to monitor audio output from the unit from the 1/4inch stereo socket with a pair of headphones.
