Switching Tracks with DMX

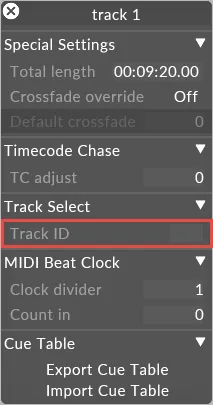

  1. Open the Track editor by right-clicking the titlebar of the Track Player.
  2. Open the track-select section by left-clicking the tab.
  3. Enter a value into the track ID text field (this value should be programmed into the lighting desk). In Designer the track ID should be written in decimal format. Track ID property of the Track editor is used to assign a note number to the current track, this number can then be programmed into the lighting desk.
  4. Set the parameter channel value within the EventTransportDmx object editor to match the track ID value.
  5. Set the command channel value within the EventTransportDmx object object editor to within 81...90 (default).
  6. Execute the trigger (with a value move from 0 to 255).

DMX Transports

For more information on the Track editor, click here.
