2x4pro Video Ouput

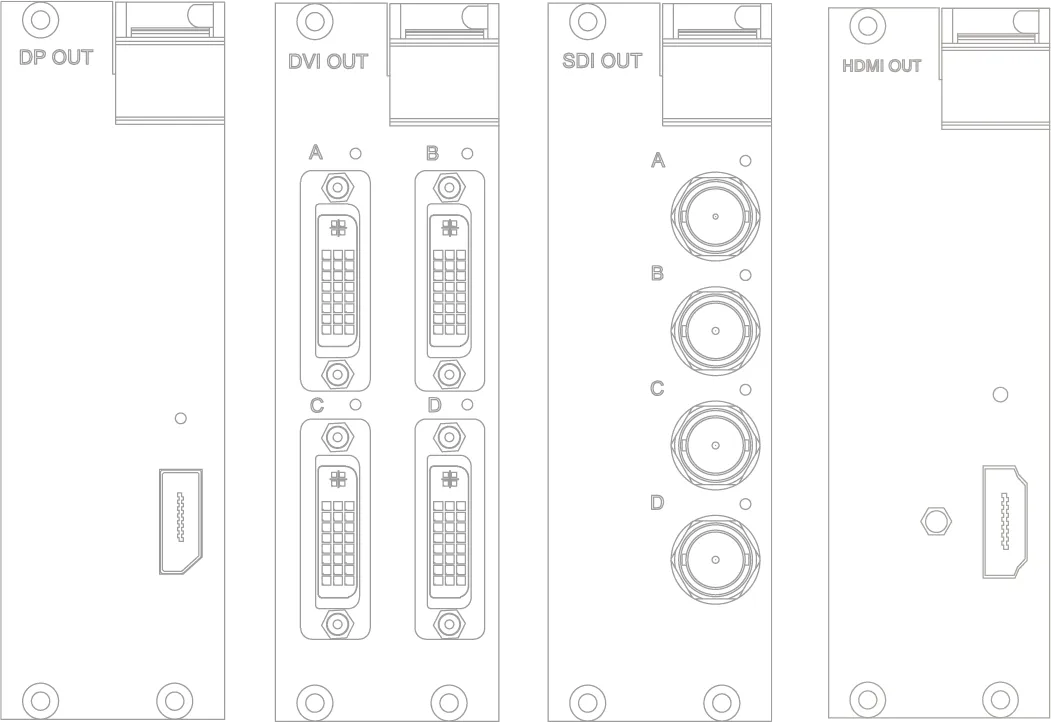

The pro and gx ranges of disguise servers come with a range of possible output configurations. It is possible to use a combination of any of the types of four VFC cards below.
| Display Port 1.2 | Quad DVI | Quad SDI | HDMI |
|---|---|---|---|
| 1 Output per card | 4 Outputs per card | 4 Outputs per card | 1 Output per card |
| Max res: 4096x2160 | Single Link DVI: (up to) 1920 x 1200 | Max res: 1920 x 1080 | Max res: 4096x2160 @60 YCbCr444 8bit 3840x2160 @60 YCbCr422 10bit* 3840x2160 @30 YCbCr444 10bit |
| LED indicator | LED indicator | LED indicator | LED indicator |
| Genlocked | All outputs genlocked | All outputs genlocked | Genlocked |
