Filter Maintenance

How to change air filters

Section titled “How to change air filters”

Changing air filters Changing Air Filters. Click the video image to view it in YouTube

VX Range

Section titled “VX Range”

VX 4

Section titled “VX 4”

To remove the air filter material, first remove the screws marked in the diagrams below.

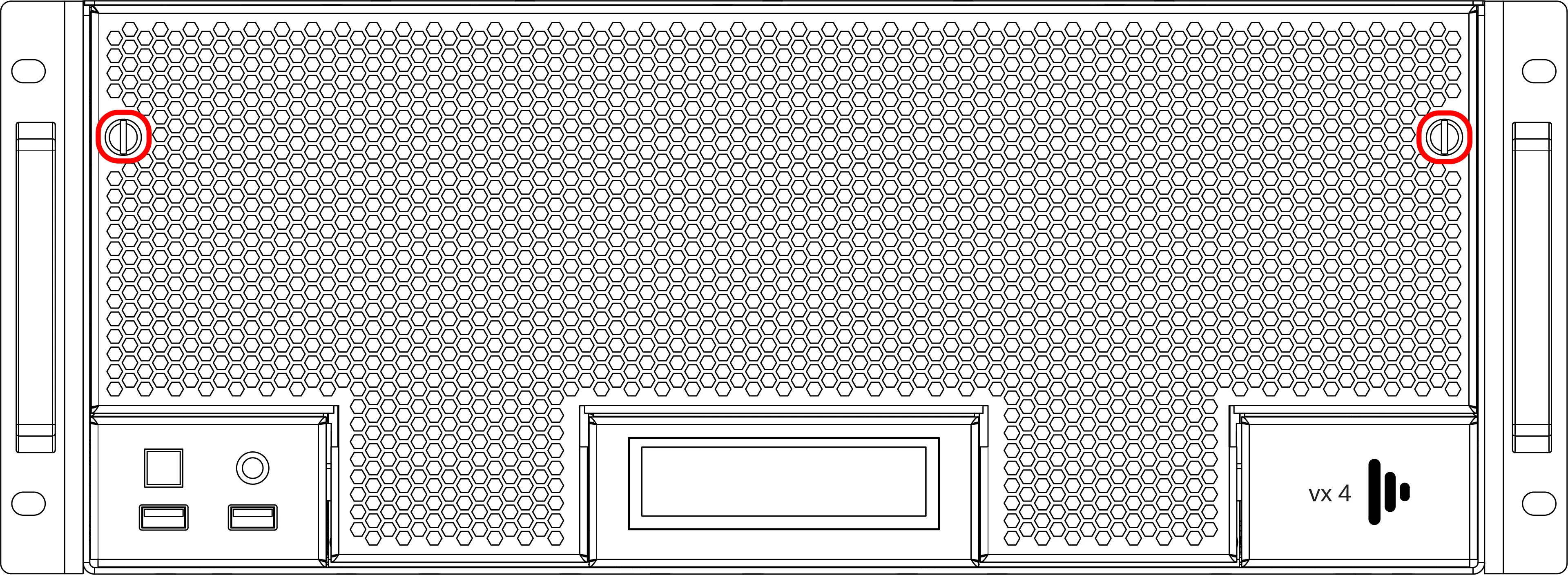

VX 4 Front thumb screws Air filter housing and thumb screws on front of VX 4 unit

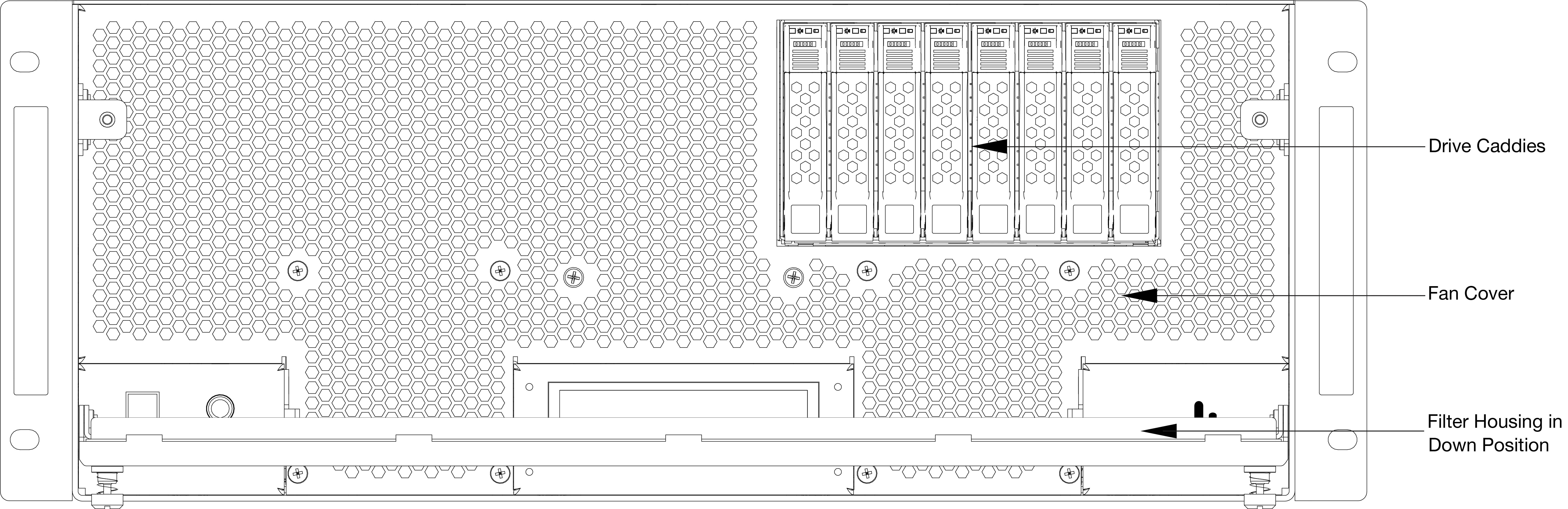

VX 4 Front grill down annotated Plan view of air filter housing on the VX 4 once opened

Next, clean the filter, then replace the filter in the metal frame and reattach the frame to the front of the unit.

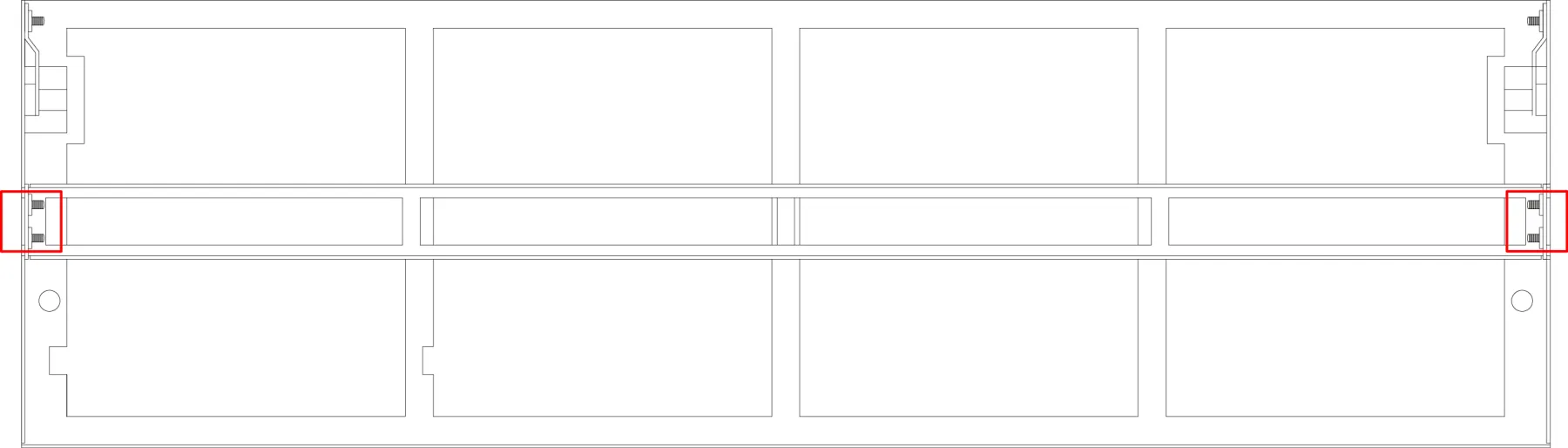

VX 4 Filter screws labelled

GX Range

Section titled “GX Range”

GX 1

Section titled “GX 1”

To remove the air filter material, first remove the screws marked in the diagrams below.

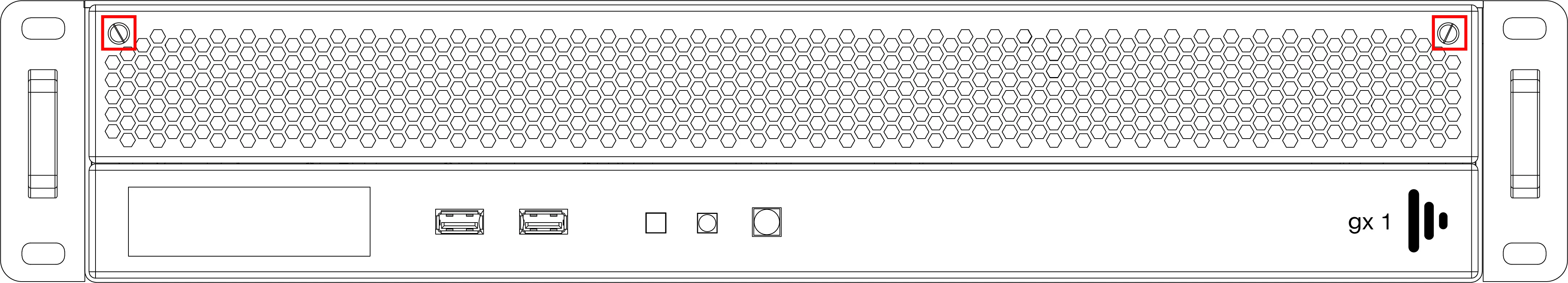

GX 1 front screws highlighted Air filter housing and thumb screws on front of GX 1 unit

GX 2 front (grill down) labelled Plan view of air filter housing on the GX 1 once opened

Next, clean the filter, then replace the filter in the metal frame and reattach the frame to the front of the unit.

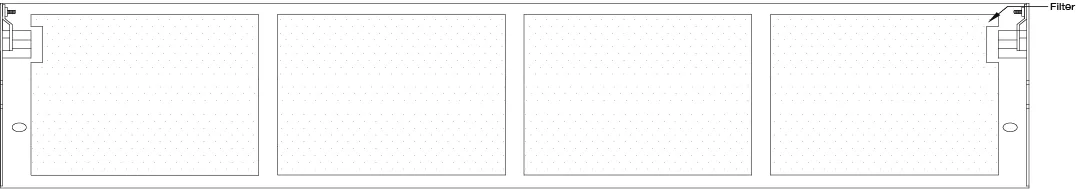

GX filter labelled GX 1

GX 2 & GX 2C

Section titled “GX 2 & GX 2C”

To remove the air filter material, first remove the screws marked in the diagrams below.

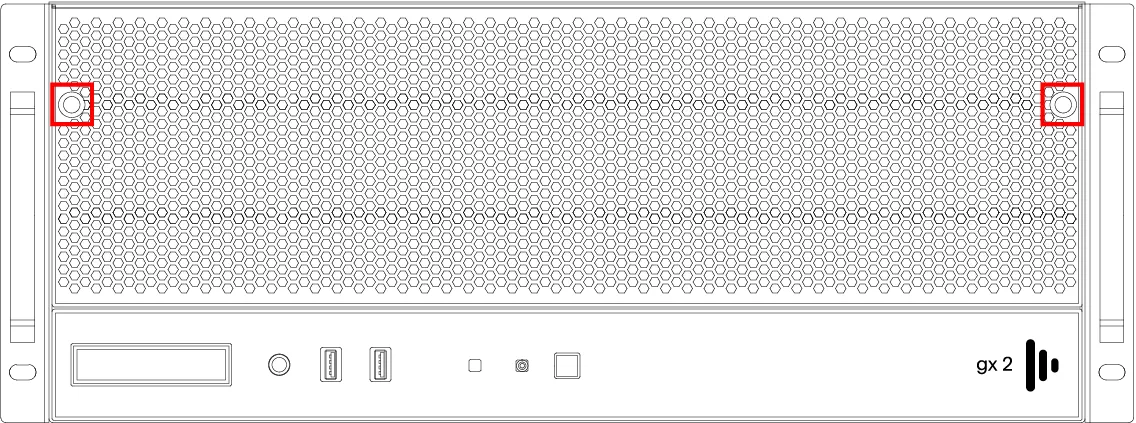

GX 2 front screws highlighted Air filter housing and thumb screws on front of GX 2 & GX 2C unit

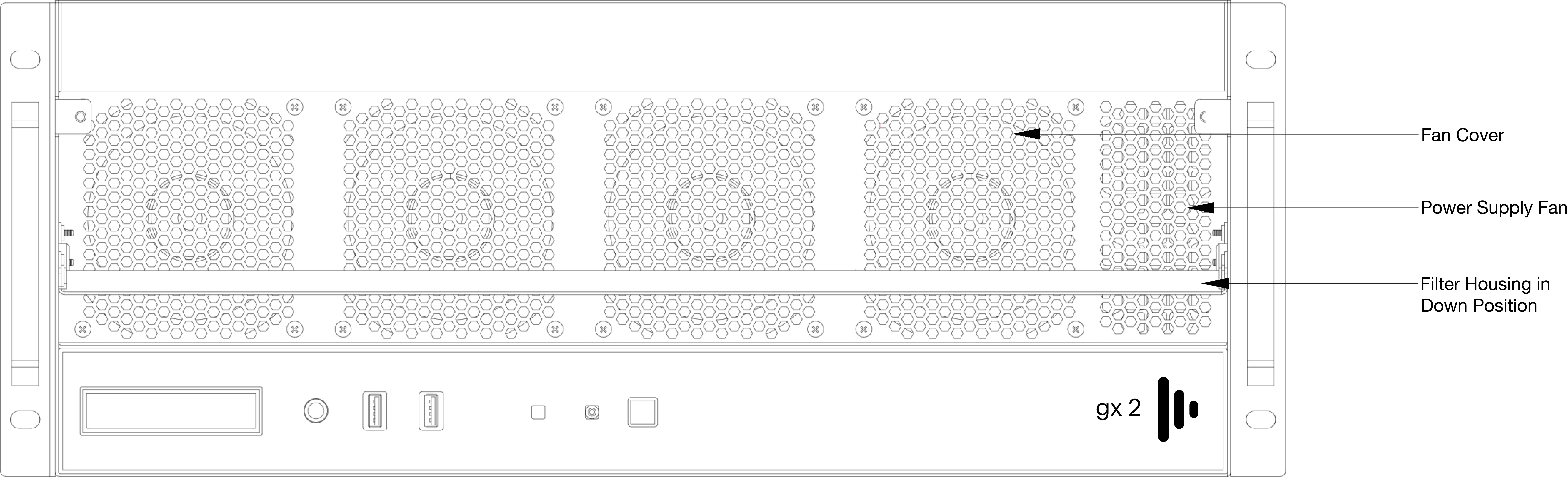

GX 2 front (grill_down)labelled Plan view of air filter housing on the GX 2 and GX 2C once opened

Next, clean the filter, then replace the filter in the metal frame and reattach the frame to the front of the unit.

Filter labelled GX 2 & GX 2C

Legacy Servers

Section titled “Legacy Servers”

To remove the air filter material, first remove the screws marked in the diagrams below.

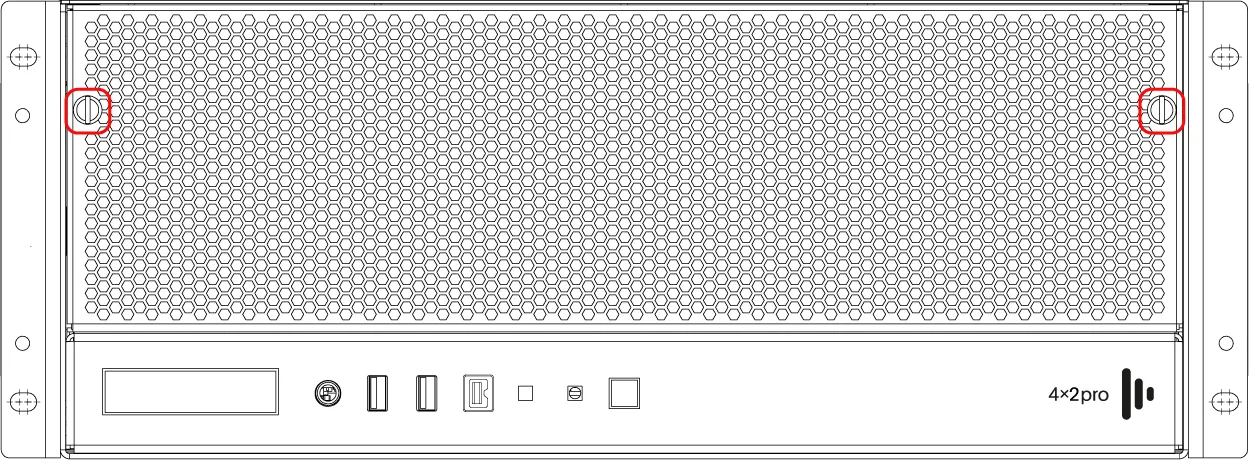

4x2pro front screws highlighted Air filter housing and thumb screws on front of 4x2pro unit

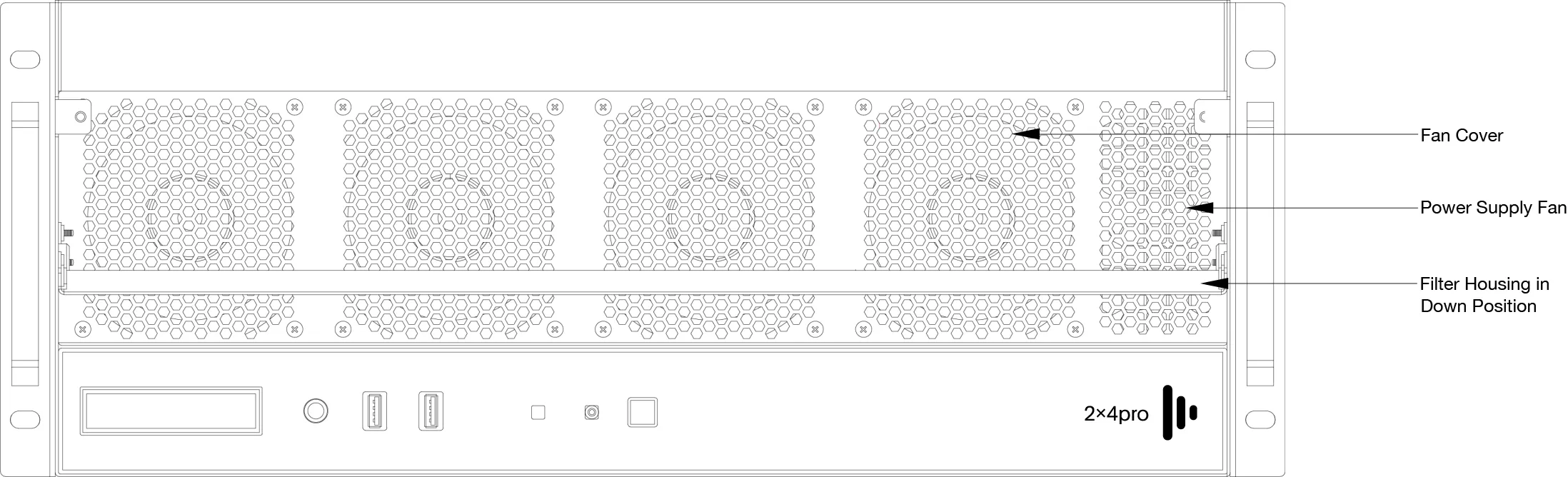

4x2pro front (grill down) labelled Plan view of air filter housing on the 4x2pro once opened

Next, clean the filter, then replace the filter in the metal frame and reattach the frame to the front of the unit.

Filter

4x4pro

Section titled “4x4pro”

To remove the air filter material, first remove the screws marked in the diagrams below.

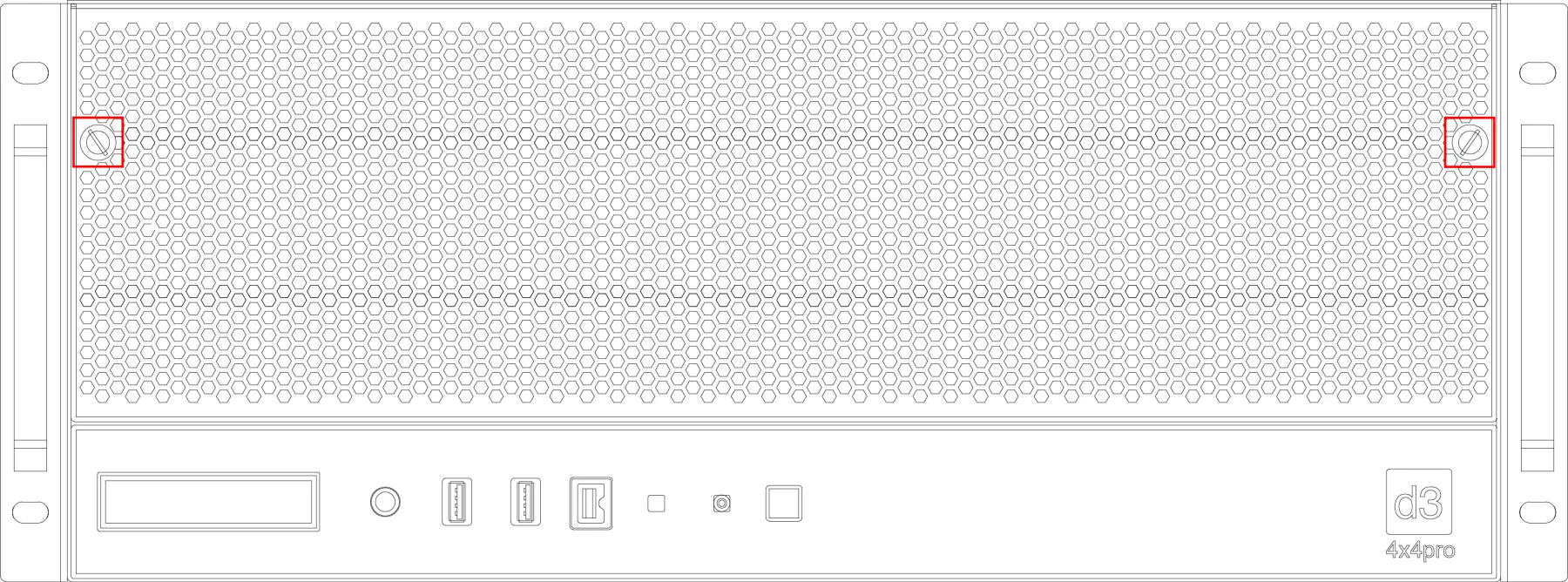

4x4 front elevation screws Air filter housing and thumb screws on front of 4x4pro unit

4x4pro front (grill down) labelled Plan view of air filter housing on the 4x4pro once opened

Next, clean the filter, then replace the filter in the metal frame and reattach the frame to the front of the unit.

Filter

2x4pro

Section titled “2x4pro”

To remove the air filter material, first remove the screws marked in the diagrams below.

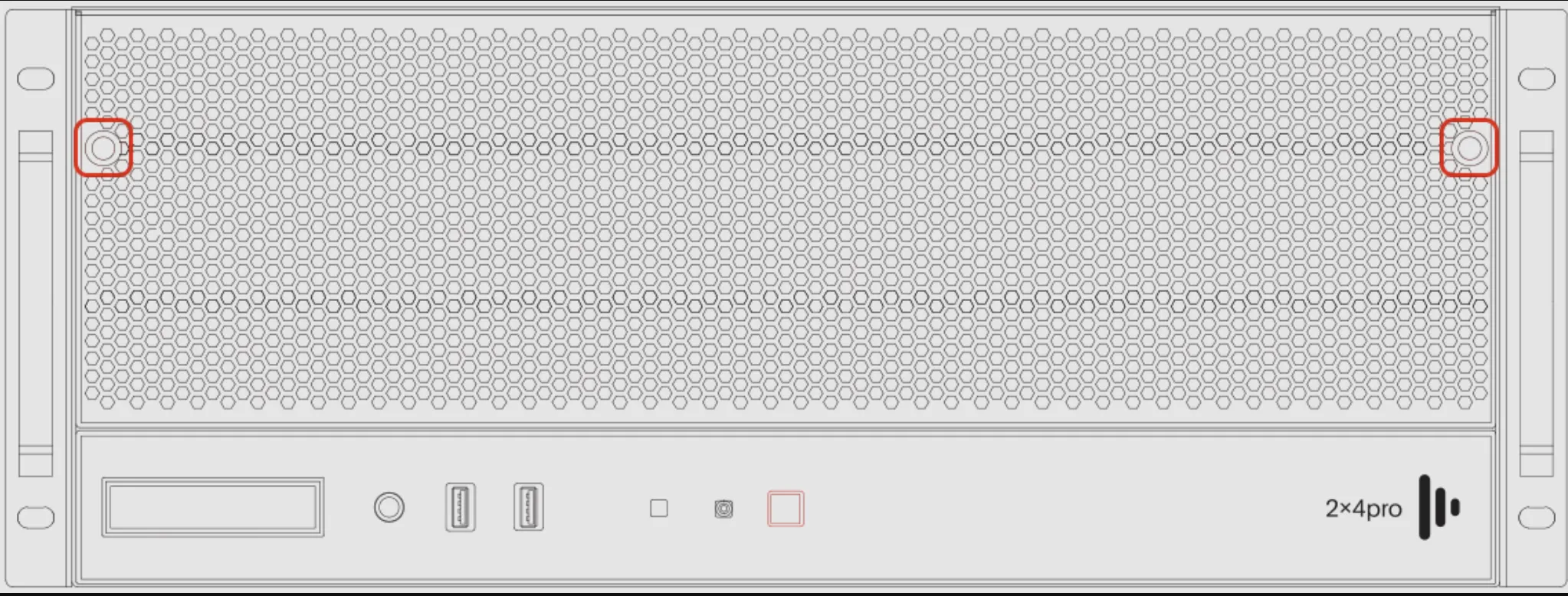

Filter replacement Air filter housing and thumb screws on front of 2x4pro unit

View of air filter housing Plan view of air filter housing on the 2x4pro once opened

Next, clean the filter, then replace the filter in the metal frame and reattach the frame to the front of the unit.

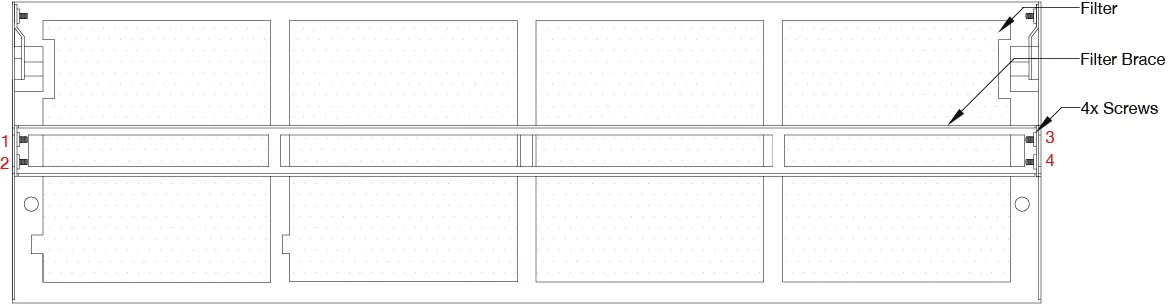

Filter 2x4pro
