Setting up an Analog Way OPS300

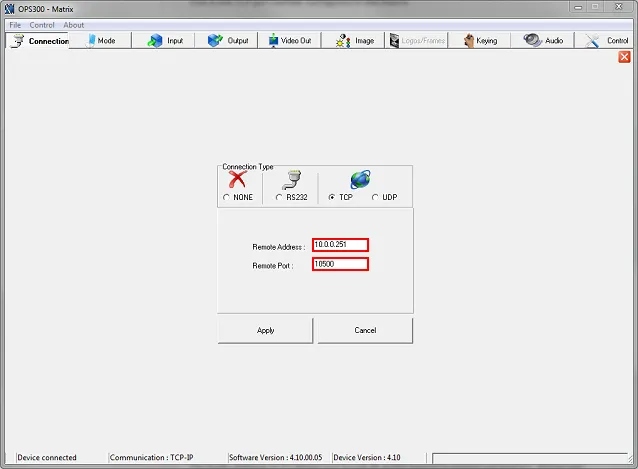

Section titled “Setting up an Analog Way OPS300”- Navigate to the Network Settings page of the Analog Way OPS300 interface. Note down the Remote Address and Remote Port numbers used or set your own. Please see your device manual for more instructions.
- Note down the Remote Address and Remote Port numbers used or set your own from the Analog Way OPS300 Network Settings page
- Set the matrix to be in the same IP range as the system.
- In Designer, create an AnalogWayOPS300 device. An AnalogWayOPS300 device is created in the same way as any other device type. Please see the Creating devices section for step-by-step instructions on how to create a device, and select AnalogWayOPS300 from the menu of different device types. This will open the AnalogWayOPS300 device editor.
- Configure the AnalogWayOPS300 device editor by referring to the device properties below.
AnalogWayOPS300 device properties
Section titled “AnalogWayOPS300 device properties”
AnalogWayOPS300 device editor
Section titled “AnalogWayOPS300 device editor”IP address
Section titled “IP address”
The IP address of the matrix.
The TCP port number configured in the matrix.
Test preset
Section titled “Test preset”
The test preset number
This button will set the matrix to the preset set in the test preset # property.
