IP-VFC ST 2110 Network Video Configuration

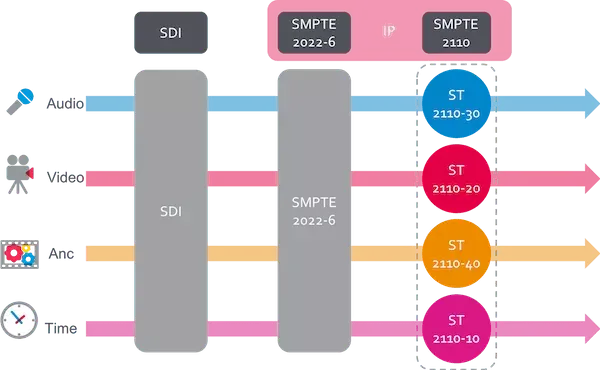

The IP-VFC card can natively output an ST 2110 network video signal in one of the fixed formats described here. In this mode the IP-VFC will have an IP address assigned and send a video stream to a network multicast address which receivers can listen to.
The following needs to be configured via the Feed View UI in Designer to output an ST 2110 video signal:
- The GPU output.
- A network address for the IP-VFC port.
- A multicast address for the video stream.
Configuring ST 2110 video output
Section titled “Configuring ST 2110 video output”Follow these steps to configure the card for ST 2110 video output:
Step 1: Hardware Setup
Section titled “Step 1: Hardware Setup”1. Insert the Card and SFP
Section titled “1. Insert the Card and SFP”- Insert the IP-VFC card into the back of the machine (like a standard VFC card).
- Insert a supported 25Gb Network SFPs into Port 1 (labelled Eth0).
Step 2: Initial Recognition and Basic Configuration
Section titled “Step 2: Initial Recognition and Basic Configuration”1. Validate Recognition in Designer
Section titled “1. Validate Recognition in Designer”- Open Designer and go to Feed View.
- Check that the IP-VFC is detected by the machine.
2. Project Settings Configuration
Section titled “2. Project Settings Configuration”- Set the correct refresh rate in your Project Settings.
- It must match one of the IP-VFC card’s supported framerates.
- Set EDID emulation to either:
- If Connected, or
- Always This ensures changes apply correctly when you click Apply Feed Settings.
Step 3: Configuring the VFC Card
Section titled “Step 3: Configuring the VFC Card”1. Open Slot Configuration
Section titled “1. Open Slot Configuration”- In Feed View, right-click on the VFC slot to configure IP-VFC settings.
2. Configure IP Address (Eth0 and Optional Eth1)
Section titled “2. Configure IP Address (Eth0 and Optional Eth1)”- Open the Eth0 details dropdown.
- Select the IP Mode:
- DHCP: Uses a DHCP server to auto-assign an IP.
- STATIC: Manually set the following using IPv4 addresses:
- IP address
- Subnet mask
- Gateway
- (Optional) Hostname or DNS if your network requires it.
For Eth1 redundancy, repeat these steps using the redundancy configuration guide.
Step 4: Validating the SFP and Adding Colour Settings
Section titled “Step 4: Validating the SFP and Adding Colour Settings”1. Check SFP Type
Section titled “1. Check SFP Type”Use the SFP Types dropdown to confirm the correct SFP is installed.
- You should see: 25G SFP under SFP 0 (Eth0).
2. Colour Settings
Section titled “2. Colour Settings”Under Colour > Colour Conversion Profile, choose: Auto.
Step 5: Output and Streaming Settings
Section titled “Step 5: Output and Streaming Settings”1. Configure Output Resolution
Section titled “1. Configure Output Resolution”- In Feed View, right-click the Port (the smaller box within the Slot in the Feed View) to open the Port Editor.
- In Display Mode, select one of the pre-configured resolutions. Check the table of supported resolution/framerate formats to make sure you’re using a supported configuration.
2. Configure Multicast Streaming (Eth0)
Section titled “2. Configure Multicast Streaming (Eth0)”In the Eth0 Multicast dropdown, set:
- IP: - IPv4 multicast address to sent the video stream to.
- Port: - Port to sent the video stream to.
- RTP Payload Type ID: - Indicates that we are sending a video stream (Don’t change this).
-
All IP-VFCs can use the same multicast address if your receiver supports source-specific multicast. Otherwise, use unique addresses per card.
-
These settings generate an SDP file on the card, which can be used to receive video on receivers.
Step 6: Enabling Genlock Synchronisation and Applying Feed Settings
Section titled “Step 6: Enabling Genlock Synchronisation and Applying Feed Settings”1. Enable Genlock (Optional)
Section titled “1. Enable Genlock (Optional)”For genlocking (via PTP or EXT sync), see the Genlocking with the IP-VFC guide.
While it is technically not required to use genlock with the IP-VFC card, it is recommended for the lowest possible latency on the card.
2. Apply Settings
Section titled “2. Apply Settings”Click Apply Feed Settings.
- This applies settings to both the GPU and the IP-VFC card.
- This may take some time.
Once successful:
- The Port box in Feed View turns green to indicate that the settings in Designer now match the settings applied to the GPU and IP-VFC card.
- If orange, click the Port to see what differs between the configuration in Designer and the GPU or IP-VFC card configuration.
Receiving video from the IP-VFC card
Section titled “Receiving video from the IP-VFC card”Different network video receivers are configured differently, but all receivers need to know what multicast and port to subscribe to to find the video stream.
Generally they discover streams in 3 ways:
- Manually by taking specific IP addresses and ports.
- Semi-manually by reading an SDP file available on the network.
- Automatically by implementing NMOS.
Receiving video with manual configuration
Section titled “Receiving video with manual configuration”Some network video receivers will have the capacity to directly type in a multi-cast address and receive a stream. For these devices you can copy the multicast address directly out of the Designer interface.
Receiving video by reading an SDP file
Section titled “Receiving video by reading an SDP file”Once the IP-VFC is configured correctly for output above, it makes an SDP file available over the network for all receivers to see. The path to this file can be manually copied using the Copy SDP path to clipboard button in the Port editor under the Eth0 Multicast info dropdown.
Some network video receivers will require that you manually give them this path so they can read the SDP file and setup the stream.
Receiving video with the help of NMOS
Section titled “Receiving video with the help of NMOS”The SDP file is also used by an NMOS server which runs on the IP-VFC itself which makes the stream discoverable to any receivers that have NMOS configured.
Receivers that support NMOS should automatically discover the stream once it’s been configured and provide you with an interface to select it.
Specifically the IP-VFC supports:
- NMOS AMWA IS-04 Discovery & Registration
- NMOS AMWA IS-05 Connection Management
Configuring Redundancy on the Eth1 port
Section titled “Configuring Redundancy on the Eth1 port”The 2nd port on the IP-VFC is called Eth1 and is designed to provide a fully redundant video stream using the 2022-7 Seamless Protection Switching standard. This allows the receivers to sit at the end of a noisy network and have packet-level redundancy, so if either the main or backup stream delivers at least 1 of every packet the stream will appear seamless.
To configure it you must insert an SFP in to the Eth1 port and follow the same steps outlined here, addressing Eth1 instead of Eth0.
The rest of the configuration should be done on the receiver to ensure it’s setup for packet-level redundancy.
