GX 3 Video Input
Max Number of Unique Inputs
| Media Server | 3G-SDI | 12G-SDI |
|---|---|---|
| GX 3 | 12 | 3 |
Supported Formats
All video standards outlined here have been tested up to the following:
- Bit depth - 10-bit (all modes).
- Chroma subsampling - YCbCr 4:2:2 (all modes).
- Each SDI input supports 3G Level A and Level B when applicable.
- All quadlink formats support either square division or two-sample interleave (2SI) methods.
4K DCI (4096 x 2160)
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
Quadlink 4K DCI (4096 x 2160 using 4x 2048 x 1080 inputs)
4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
UHD (3840 x 2160)
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Quadlink UHD (3840 x 2160 using 4x 1920 x 1080 inputs)
2160p50, 2160p59.94, 2160p60
2K DCI (2048 x 1080)
2K DCI 23.98p, 2K DCI 24p, 2K DCI 24psf, 2K DCI 25p, 2K DCI 25psf, 2K DCI 29.97p, 2K DCI 29.97psf, 2K DCI 30p, 2K DCI 30psf, 2K DCI 47.952p, 2K DCI 48p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
Full HD (1920 x 1080)
1080p23.98, 1080psf23.98, 1080p24, 1080psf24, 1080p25, 1080psf25, 1080p29. 7, 1080psf29.97, 1080p30, 1080psf30, 1080p50, 1080i50, 1080p59.94, 1080i59.94, 1080p60, 1080i60
HD (1280 x 720)
720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
It is possible to have a different format on each input. However, the limitations are a maximum of 3x 2160p60 or 12x 1080p60.
Back-Plate Layout
| SDI Panel - 4U | Panel |
|---|---|

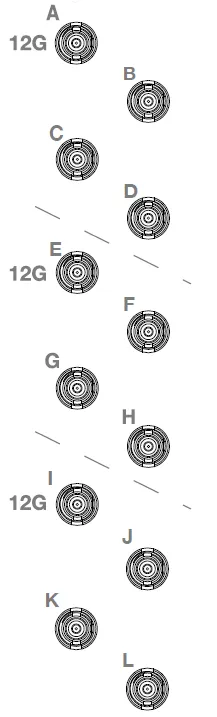

 Diagram of Video CaptureBNC connections on rear of a GX 3 |  Diagram of Video CaptureBNC connections on rear of a GX 3 |
Please contact Disguise Support for guidance on performance standards.
