Powering the Unit

The Pro and GX ranges of Disguise servers use Neutrik PowerCON TRUE1 as the power input.

The TRUE1 is:

  • Lockable
  • Live-Mating (safely)
  • Extendable
  • Dust and water resistant according to IP65 in mated condition

Cabling

To power a server, you should use a cable with the following attributes:

  • SJT flexible cord, min. 12AWG, min. 300V, min. 60∨dm;C, max 4.5 m long.
  • One end terminated with NEMA 5-15P/BS 1363/CEE 7 plug.
  • Other end terminated with appliance coupler type Neutrik AG, type NAC3FX.

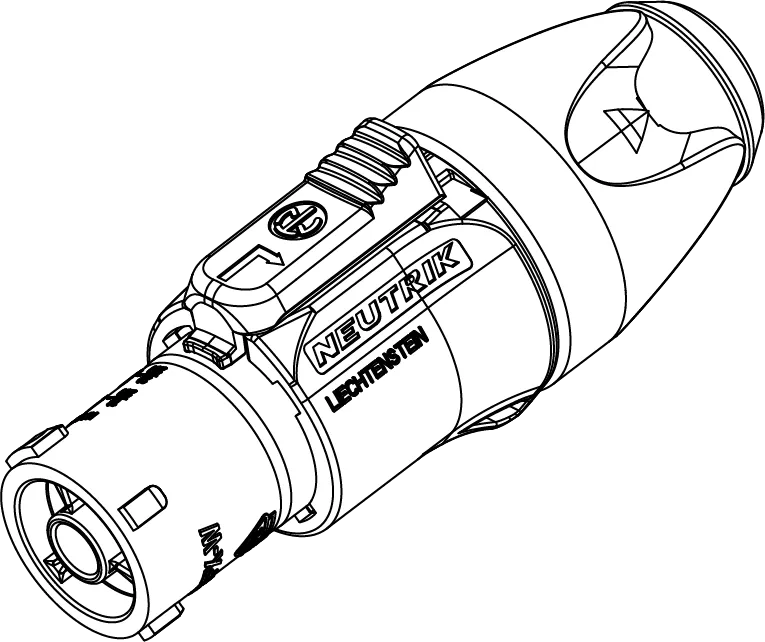

Neutrik powerCON TRUE1 connector Neutrik powerCON TRUE1 connector
