Adding a Feed Rectangle for Screens

Warning

Feed rectangles flash blue, every 5 minutes in the GUI. This is to prevent the GUI head being used as an un-authorised output. The blue flash is not visible on the outputs.

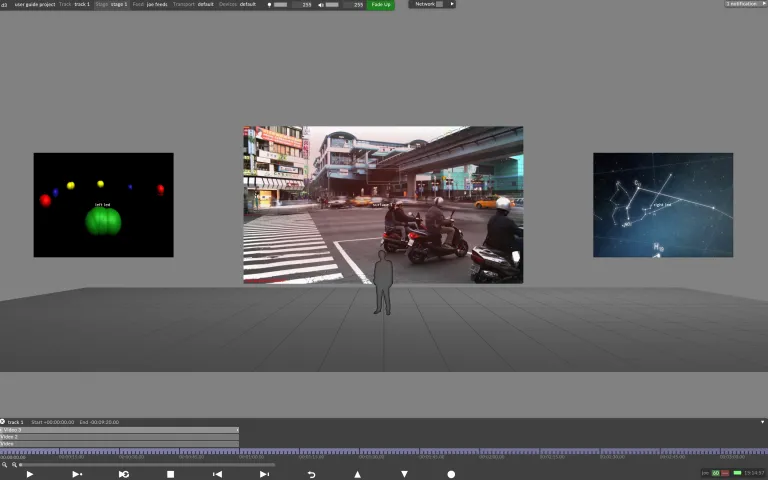

The image here shows a Screen in the Stage Visualiser:

1. Left-click feed in the State editor (bar at the top of the screen). This will switch the Stage level with the Feed level. The Screen section (top half of the Feed level) now shows a simplified view of the Screen or the virtual projector output, depending on the type. Screens from the Stage level are displayed in the Screen section (top half of the Feed level)

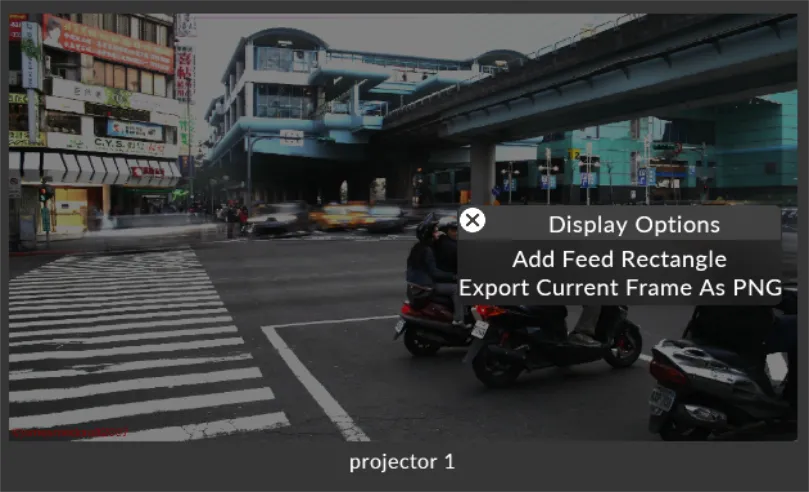

2. Right-click the Screen you want to create a Feed rectangle for. This will open the Feed rectangle menu. 3.Left-click add feed rectangle. This will create the Feed rectangle. Feed rectangle samples content from the Screen you right-clicked to the output head, in this example Output 2

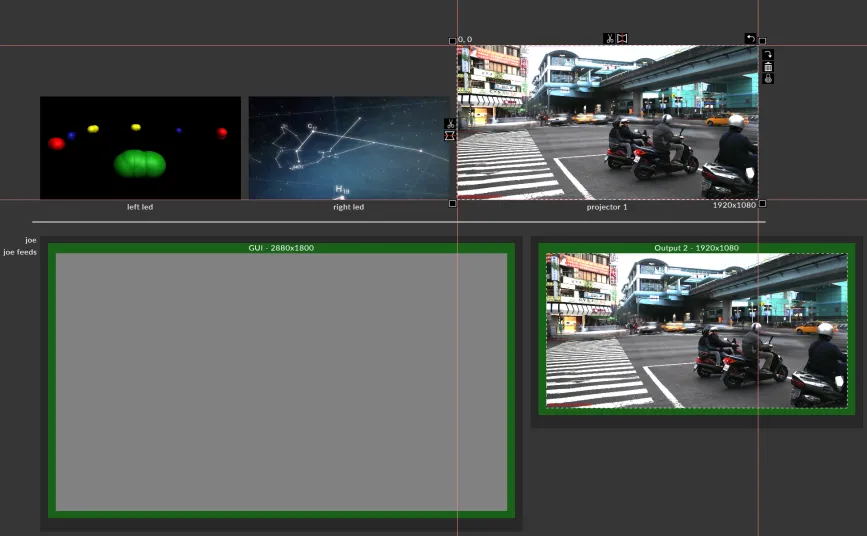

The Feed rectangle samples the whole of the Screen you right-clicked. The output head of the Feed rectangle, in this example Output 2, represents the area of the output display the content is copied to.

Note

Feed rectangles can also be easily and quickly created using the Alt+Left Click shortcut to drag an arrow from a screen onto an output. To do this, simply press and hold the Alt key as you left-click, hold and drag the mouse from a stage screen above the line to a desired output below it.
