Managing EDIDs on NVIDIA Machines

Emulating EDIDs within Windows

1. Navigate to the “View system topology” tab.

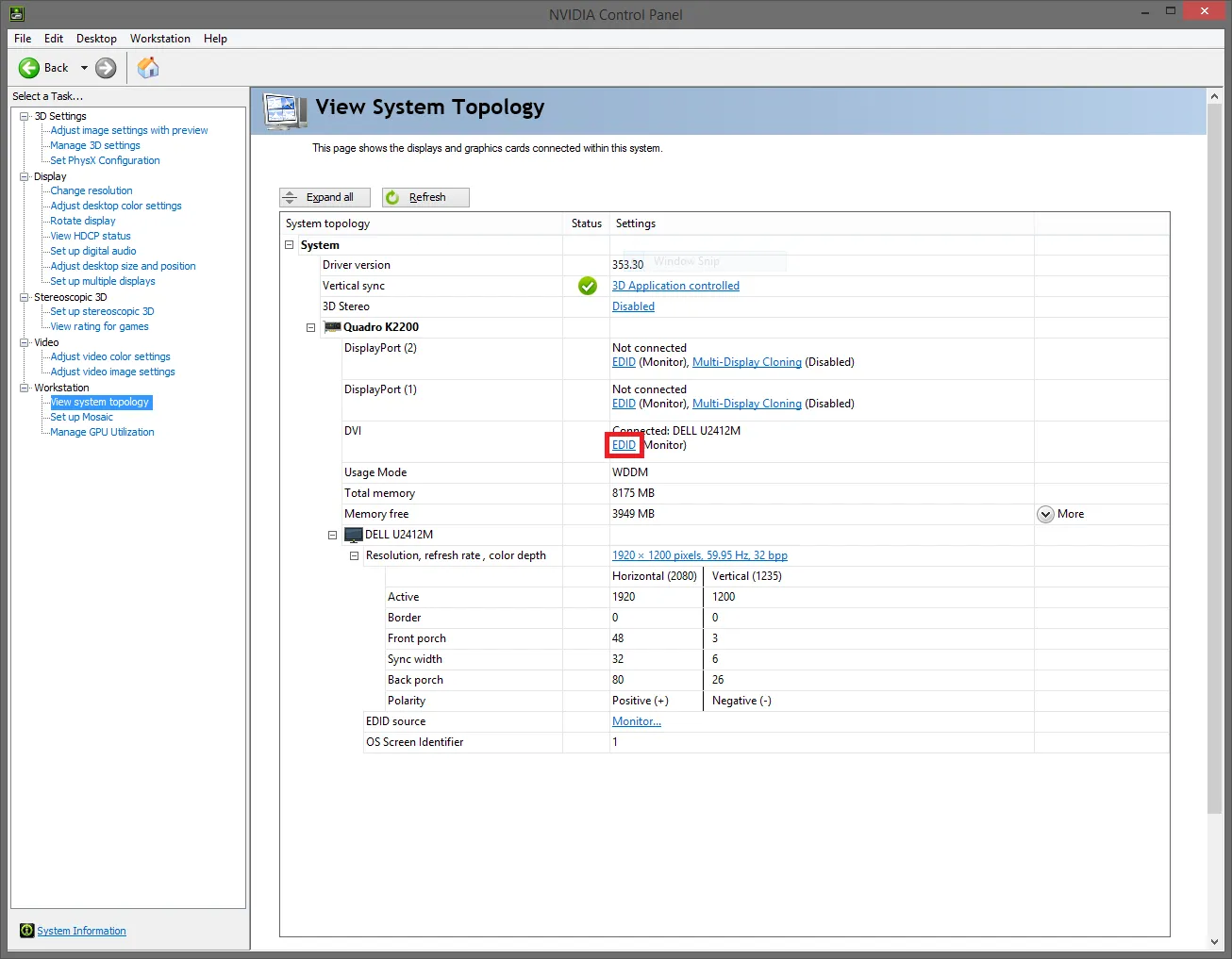

2. Click the EDID button next to a card connection (DVI or DisplayPort).

3. Navigate to the “Load” tab inside the Manage EDID window.

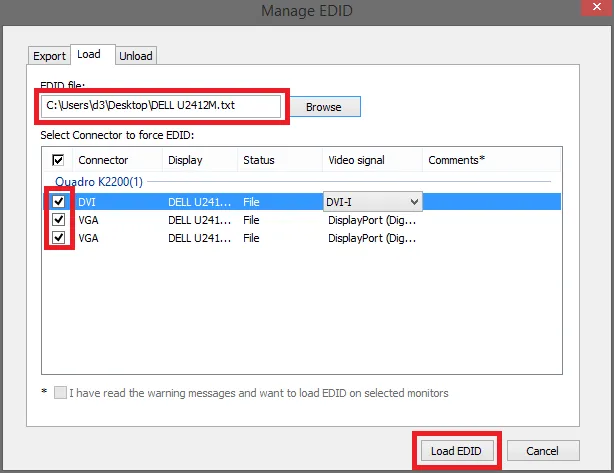

4. Browse to your preferred EDID and select which display connections you want to emulate the EDID on.

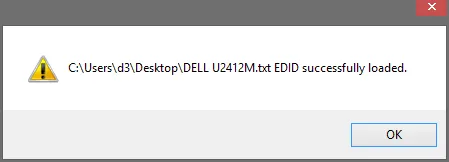

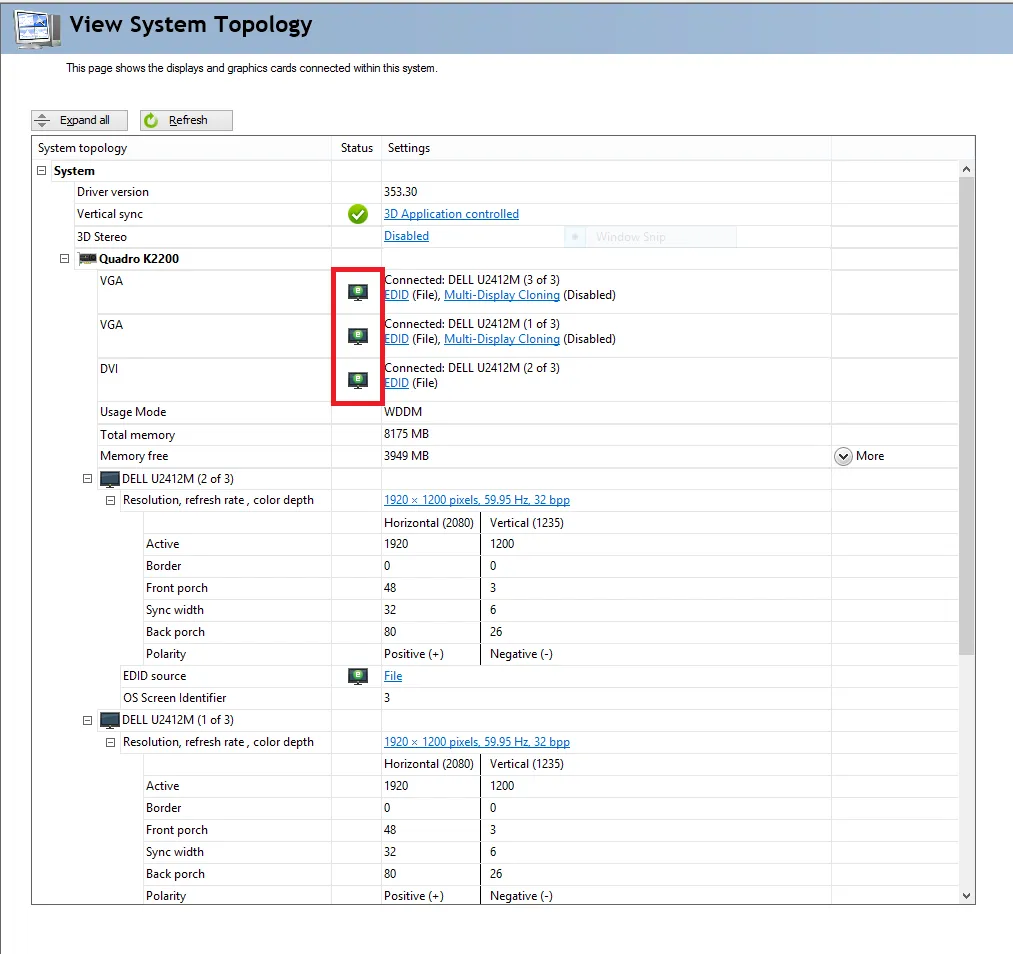

5. After the EDID is successfully applied you will see this small icon which indicates that the display connection has an emulated EDID asociated with it:

Exporting EDIDs

1. Navigate to the “View system topology” tab.
2. Click the EDID button next to a card connection (DVI or DisplayPort)

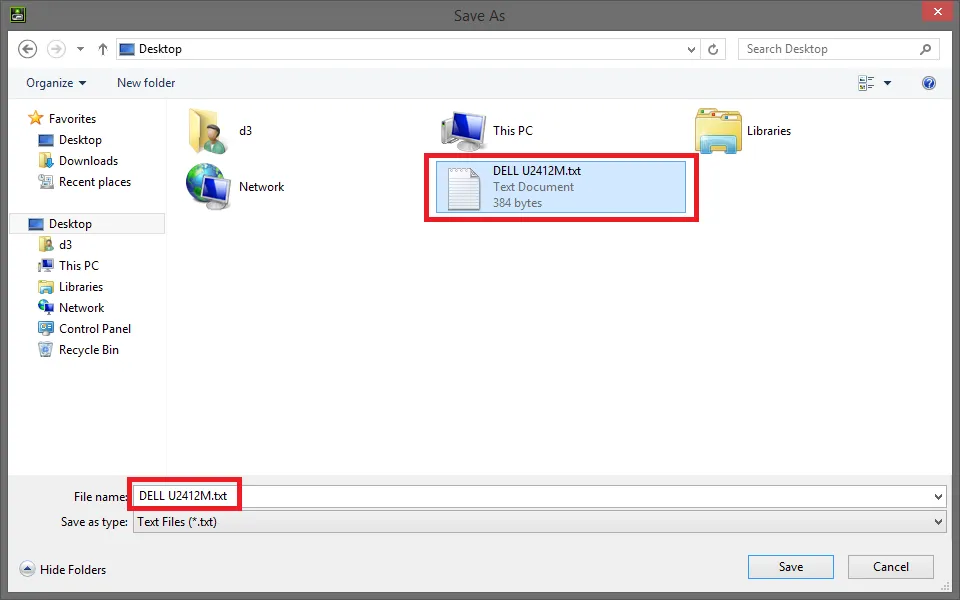

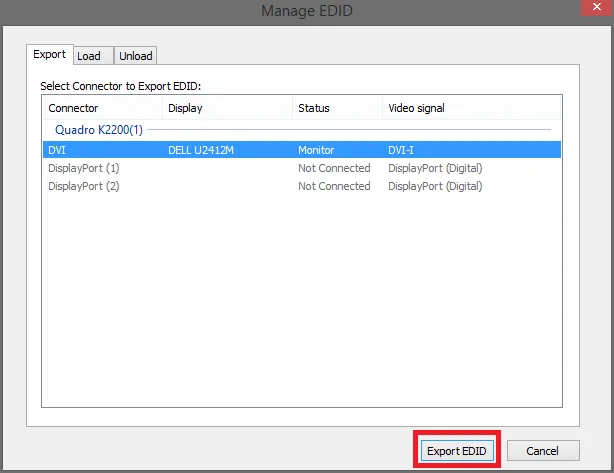

3. Export your preferred EDID to the desktop or documents folder


Resetting EDIDs

EDIDs on all outputs of all connected VFC cards can be reset to a neutral state easily using the keyboard shortcut FFS (Four Finger Salute) as follows:

• Hold CTRL + ALT + SHIFT + F12
• Disguise will display several status messages on the screen during the reset process; please wait until reset process has completed before continuing.

Note

You can only genlock outputs that have identical EDID
