2x2 Diagrams
2x2 Base unit

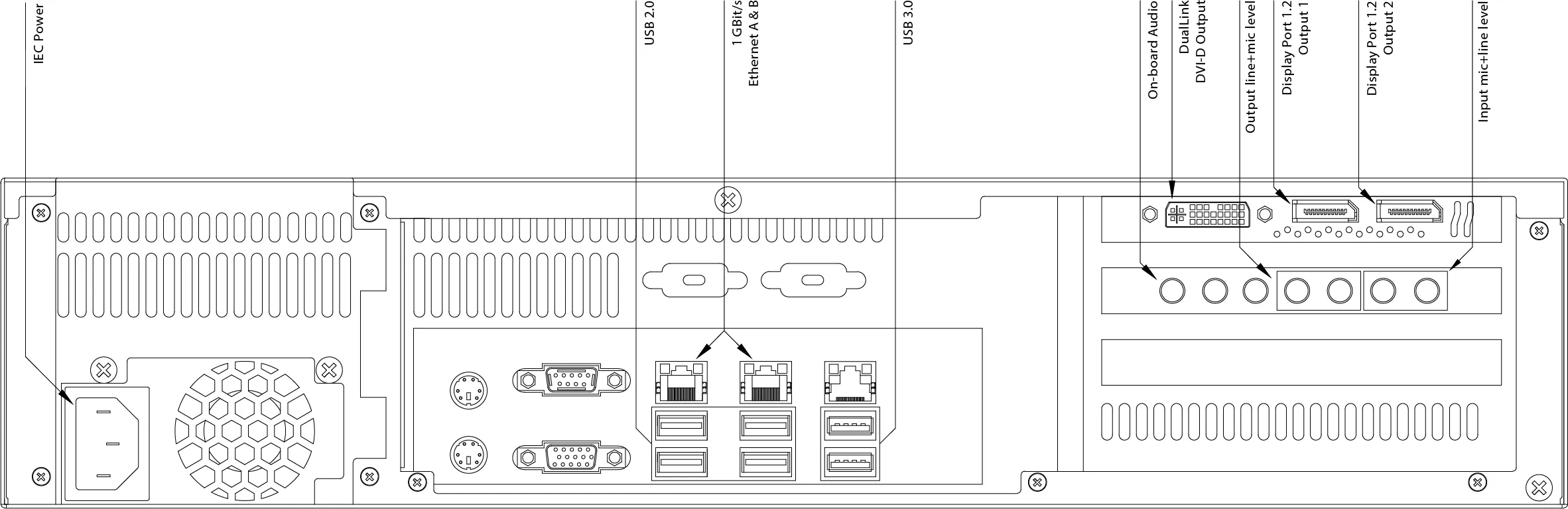

Section titled “2x2 Base unit”The base unit has no video capture card and comes with the on-board audio card (Pro-audio is also available). Base unit 2x2 rear panel diagram
Base unit 2x2 rear panel diagram
2x2 Configuration A
Section titled “2x2 Configuration A”1 x DVI video capture card and shown with Pro-audio card (on-board audio is also available).
2x2 Configuration B
Section titled “2x2 Configuration B”2 x 3G-SDI video capture card and shown with Pro-audio card (on-board audio is also available).
