VX 4+ Video Input
Max Number of Unique Inputs
Section titled “Max Number of Unique Inputs”| Media Server | 3G-SDI | 12G-SDI |
|---|---|---|
| VX 4+ | 16 | 4 |
Supported Formats
Section titled “Supported Formats”All video standards outlined here have been tested up to the following:
- Bit depth - 10-bit (all modes).
- Chroma subsampling - YCbCr 4:2:2 (all modes).
- Each SDI input supports 3G Level A and Level B when applicable.
- All quadlink formats support either square division or two-sample interleave (2SI) methods.
4K DCI (4096 x 2160)
Section titled “4K DCI (4096 x 2160)”4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
Quadlink 4K DCI (4096 x 2160 using 4x 2048 x 1080 inputs)
Section titled “Quadlink 4K DCI (4096 x 2160 using 4x 2048 x 1080 inputs)”4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
UHD (3840 x 2160)
Section titled “UHD (3840 x 2160)”2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Quadlink UHD (3840 x 2160 using 4x 1920 x 1080 inputs)
Section titled “Quadlink UHD (3840 x 2160 using 4x 1920 x 1080 inputs)”2160p50, 2160p59.94, 2160p60
2K DCI (2048 x 1080)
Section titled “2K DCI (2048 x 1080)”2K DCI 23.98p, 2K DCI 23.98psf, 2K DCI 24p, 2K DCI 24psf, 2K DCI 25p, 2K DCI 25psf, 2K DCI 29.97p, 2K DCI 29.97psf, 2K DCI 30p, 2K DCI 30psf, 2K DCI 47.952p, 2K DCI 48p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
Full HD (1920 x 1080)
Section titled “Full HD (1920 x 1080)”1080p23.98, 1080psf23.98, 1080p24, 1080psf24, 1080p25, 1080psf25, 1080p29.97, 1080psf29.97, 1080p30, 1080psf30, 1080p50, 1080i50, 1080p59.94, 1080i59.94, 1080p60, 1080i60
HD (1280 x 720)
Section titled “HD (1280 x 720)”720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
Back-Plate Layout
Section titled “Back-Plate Layout”

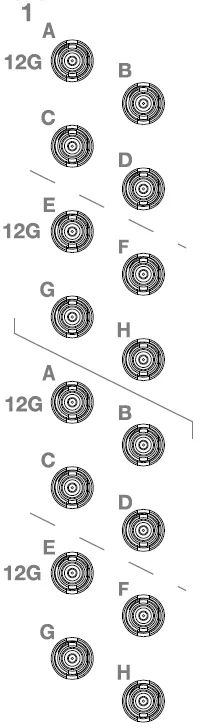

Diagram of Video Capture
BNC connections on the
rear of the unit
