Setup OSC Transport

To use OSC transport control please follow the steps described below. Please note that if jumping to a specific section in the timeline you need to tag the timeline with a specific cue syntax.

Step 1: Create an OSC device

See OSC Device information for how to create and work with OSC devices.

Step 2: Create a new OSC Event Transport

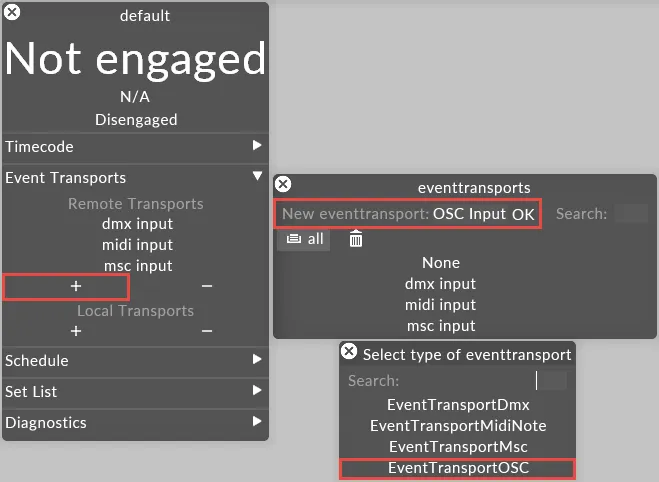

1. Right-click Transport.
   This will open the transport manager dialog.
2. Expand the Event Transports section, Left click on the + button.
3. In the “New eventtransport” section, Enter a name for the new Event Transport and press OK.
4. Select EventTransportOSC from the transport list.

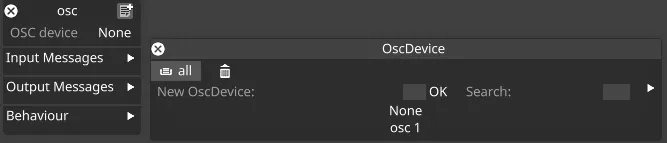

Step 3: Select the OSC device

At the top of the OSC Event Transport editor, the OSC device created in step 1 needs to be selected to allow the transport to connect to the external device.

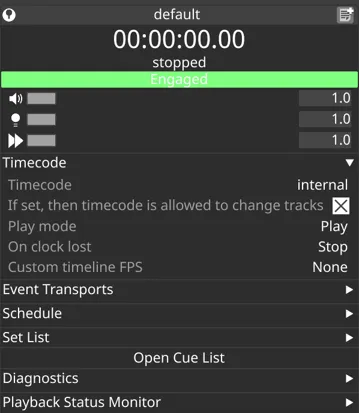

Step 4: Engage Transport Manager

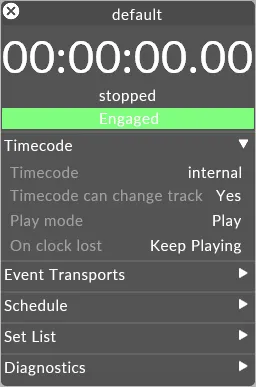

To engage all transports within the transport manager, left-click on “Disengaged” in the transport window.

The button will change to “Engaged” and flash green which means that the all transports controls are engaged.

Note

Please note: If you want changes you make in to appear on the OSC application you are using, feedback mode needs to be set to always send or only send changes.

Next Steps

Once the OSC Event Transport is configured and able to send & receive OSC messages, it is possible to customise the behaviour of the Event Transport:

• Controlling the Transport
  • Including Triggering cues
• Monitoring the Transport
