Set up DMX Transports
This sub-chapter explains how to configure Designer to control the Timeline with Art-Net.
Creating an EventTransportDmx Object

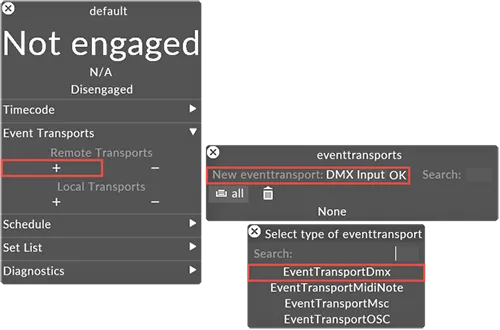

Section titled “Creating an EventTransportDmx Object”- Right-click on the Transport menu from the d3 State menu bar.
- Under the Event Transports tab click the + icon and create a new EventTransportDmx object. This will open the EventTransportDmx editor.
State Listen/Command operating modes
Section titled “State Listen/Command operating modes”Before creating a EventTransportDmx object it is important to understand the difference between the state listen and command operating modes.
Designer offers two operating modes to utilise DMX as a show control protocol:
- State Listen mode
- Command mode
State Listen mode
Command mode
Behaviour Section
Section titled “Behaviour Section”Cues Are
Section titled “Cues Are”This option defines where cues are global or local to the current track.
When set to global (all tracks), Disguise will change track if jumping to a cue that is not on the current track. This means that all cue tags need to be unique over multiple.
When set to local (current track), Disguise will only jump to cues on the current track. This means cue tags do not need to be unique over multiple tracks.
Play Mode
Section titled “Play Mode”This the play mode to be in when jumping to a cue.
Personality
Section titled “Personality”This allows the user to select whether to use State Listen mode or Command mode.

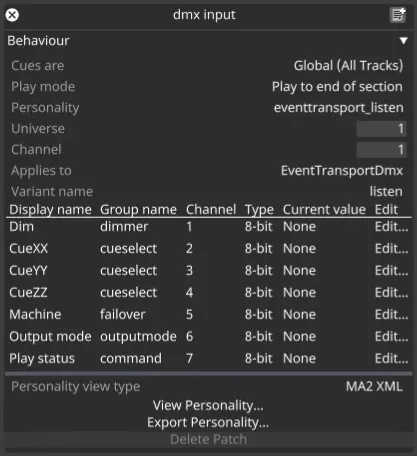

State Listen mode
Section titled “State Listen mode”In State Listen mode, Disguise listens to the state of various channels to understand how it should be responding.

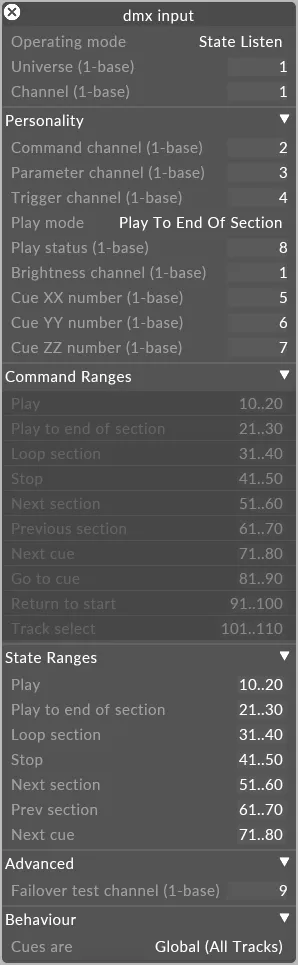

State Listen utilises five channels to control the Disguise show and reacts instantly to changes in these channel values. A list of the default channels used in State Listen mode can be seen in the section EventTransportDmx Personality properties above. It allows jumping to cues at any point on any track in your project and allows you to control the play mode in which it should be.
For most purposes the State Listen mode is the most appropriate methodology.

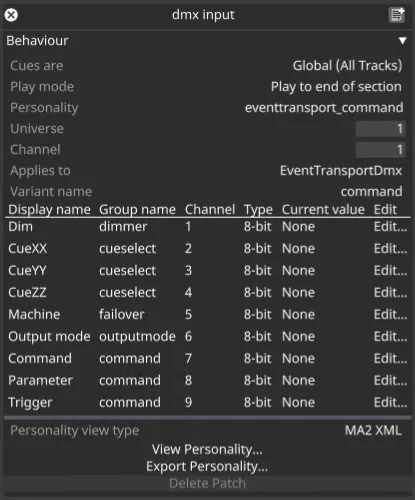

Command mode
Section titled “Command mode”In Command mode, you build a command utilising two (or more) channels and then use a trigger channel (spiking to 255) to issue the command.
In this mode two actions are required for a command to be executed:
- You construct a command by setting values in various channels
- You issue the command using a trigger channel
The only exception to this is the brightness channel, which constantly matches the channel value.
Universe (1-base)
Section titled “Universe (1-base)”This is the universe Designer will listen on for Art-Net commands.
Channel (1-base)
Section titled “Channel (1-base)”This is the channel Designer will listen on for Art-Net commands.
Personality Section
Section titled “Personality Section”Dim Channel (1-base)
Section titled “Dim Channel (1-base)”This is the channel Disguise will listen to for any changes to the master brightness.
Cue XX Number (1-base)
Section titled “Cue XX Number (1-base)”The value sent to this channel will set the cue xx number for any go to cue commands when in command operating mode. In state listen mode, Disguise will automatically jump to the cue when the value sent changes.
Cue YY Number (1-base)
Section titled “Cue YY Number (1-base)”The value sent to this channel will set the cue yy number for any go to cue commands when in command operating mode. In state listen mode, Disguise will automatically jump to the cue when the value sent changes.
Cue ZZ Number (1-base)
Section titled “Cue ZZ Number (1-base)”The value sent to this channel will set the cue zz number for any go to cue commands when in command operating mode. In state listen mode, Disguise will automatically jump to the cue when the value sent changes..
Machine (1-base)
Section titled “Machine (1-base)”When set to non-zero, this channel triggers a machine failover event.
Output mode (1-base)
Section titled “Output mode (1-base)”This channel sets the output mode to either:
- Fade Up
- Fade Down
- Hold
Play Status (1-base)
Section titled “Play Status (1-base)”State Listen Mode only
This is the channel Disguise will listen to for play state changes.
Command Channel (1-base)
Section titled “Command Channel (1-base)”Command operating mode only.
This is the channel Designer will listen for commands. When the value sent to this channel is within range of a command, and the trigger channel is set to 255, Disguise will perform that command. For example, to trigger a next section command with the default settings, send a value in the range defined in the next section field (51-60 inclusive), and send the value 255 to the trigger channel.
Parameter Channel (1-base)
Section titled “Parameter Channel (1-base)”Command operating mode only.
The parameter is used when the track select command is issued. It defines which track to select.
Trigger Channel (1-base)
Section titled “Trigger Channel (1-base)”Command operating mode only.
This is the channel Disguise will listen for triggers. A trigger triggers the command the command channel is set to when the value is 255.
